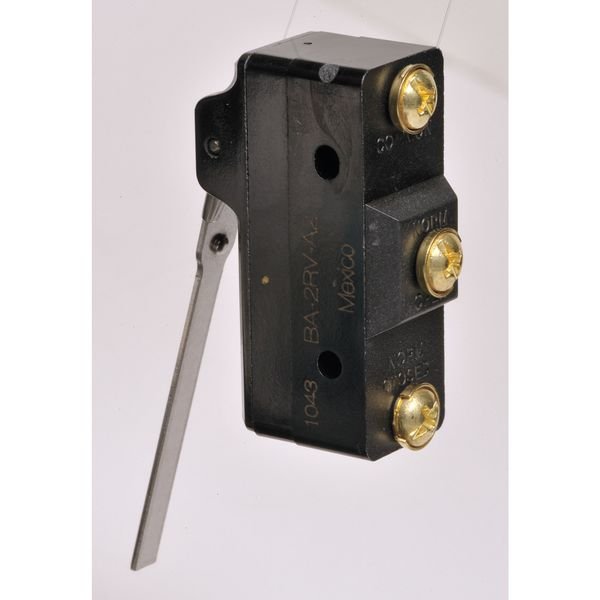

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
20 A @ 480 V
DC Contact Rating - Snap Action Switch
20 A @ 230 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
2.5 in
Height - Snap Action Switch
0.95 in
Width - Snap Action Switch
1.94 in
Depth - Snap Action Switch
0.07 in
Standards
CE, CSA, ENEC, UL Listed
Type of Actuator
Straight Lever
Watertight - Snap Action Switch
No
Differential Travel
0.109 in
Electrical Connection - Snap Action Switch
Screw
Operating Temp. Range
-67 Degrees to 185 Degrees F
Mounting Dimension - Snap Action Switch
1.00 in Centers
Voltage Rating
125/250/480VAC
AC Contact Rating
20 A @ 250 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Differential Travel - Maximum
0.109 in
Operating Force - Minimum
Not Applicable
Roller Diameter
Not Applicable
Center Mounting Hole Distance
1 in
Electrical Connection
Screw
Roller Position
Not Applicable
Operating Temperature - Maximum
185 Degrees F
Roller Material
Not Applicable
Mounting Hole Diameter
1/8 in
Lever Actuator Length
2.5 in
Roller Adjustability
Not Applicable
Operating Force - Maximum
2.5 ozf
Operating Temperature - Minimum
-67 Degrees F
Differential Travel - Minimum
Not Applicable
Country of Origin (subject to change)
Mexico
