Voltage Regulation %
-10, +16%, +9%
NEMA Plug Configuration
5-15P
NEMA Receptacle Configuration
5-15/20R, 5-15R
Features
LEDs Display Incoming Voltage Range, Surge Suppression and Line Fault Status
Product Type
Line Conditioner
UPS AC Suppression Joule Rating
1440
Material of Construction
Plastic
Front Panel LEDs
7 LEDs show incoming voltage status, protection present and line fault conditions
Nominal Output Voltage(s) Supported
120V
EMI / RFI AC Noise Suppression
80 dB
Overvoltage Correction
Input voltages over 128V (+/-3V) are reduced by 10%
Form Factors Supported
Small Tower
Brownout Correction
Input voltages between 111V (+/-3V) and 103V (+/-3V) are boosted by 9%.
Output Capacity Details
Supports 120V 20A 2400W intermittent and 16A 1920W continuously when connected to a 120V 20A rated circuit; Supports 120V 15A 1800W intermittent and 12A 1440W continuously when connected to a 120V 15A rated circuit
Input Plug Type
NEMA 5-15P
Voltage Regulation Description
Maintains usable 120V nominal voltage during brownouts as low as 89VAC and over-voltages as high as 147VAC. Input voltages between 112V~127V are passed through unchanged.
Input Cord Details
Optional wireable 5-20P input plug is included for use with 120V 20A circuit applications
Severe Brownout Correction
Input voltages below 102V (+/-3V) are boosted by 19%.
Additional Information
Voltage Regulation: +10%/-12%, Input voltages over 128V are reduced by 9.6%, Input voltages between 103 and 112V are boosted by 8.9%, Input voltages below 102V are boosted by 18.8%, Network grade AC surge suppressionMaintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, point-of-sale equipment, and other applications requiring clean, regulated AC power.
Package Contents
LC2400 2400W Mini Tower Line Conditioner, LC2400 Line Conditioner, Instruction manual
Protection Type
Over Voltage, Brownout, Surge, EMI / RFI
Product Name

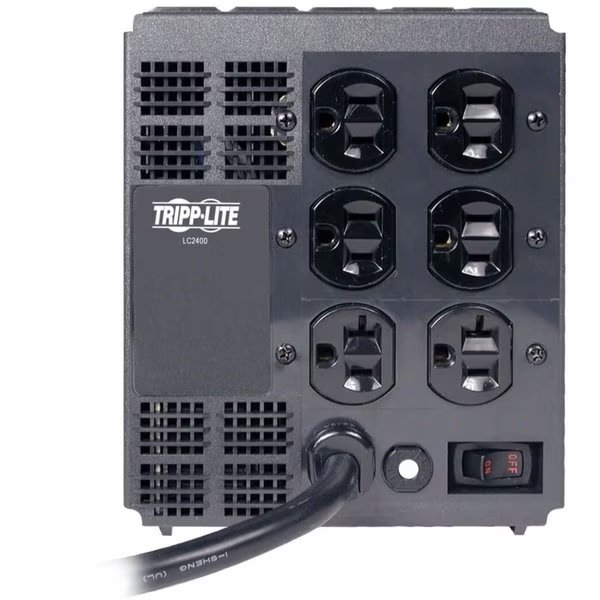

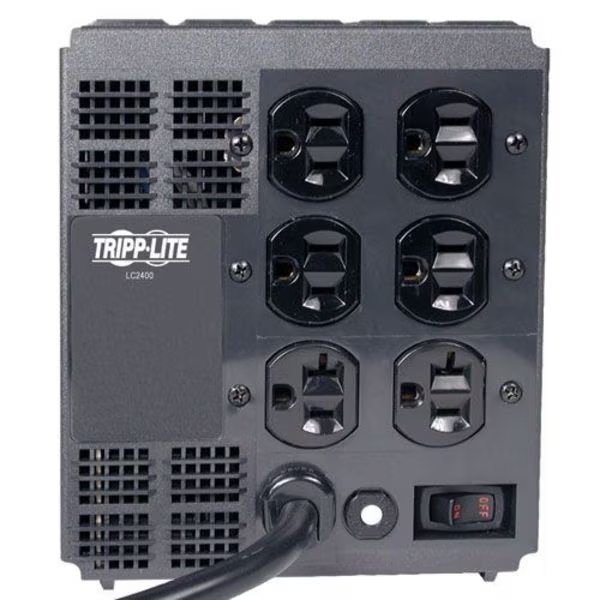

LC2400 2400W Mini Tower Line Conditioner
Country of Origin (subject to change)
China
