| Switch Action | Open/Close on Rise |
| Voltage | 24 to 277V AC |
| Sensor Type | Bi-Metallic Spring |
| Differential | 0.7 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 1 |
| Thermostat Control Range | 40 Degrees to 90 Degrees F |
| Mounting Location | wall |
| Switch Type | SPDT |
| Color | Brown |
| Width | 3 in |
| Height | 5 in |
| Locked Rotor Amps @ 240V | 18 A |
| Remote Sensing Capability | No |
| Standards | UL |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Inductive Amps @ 120V | 10 A |
| Number of Switches | 2 |
| Thermostat Switch Type | SPDT |
| Remote Sensing Bulb Included | No |
| Thermostat Voltage | 24 to 277V AC |
| Inductive Amps @ 240V | 10 A |
| Full Load Amps @ 120VAC | 15 A |
| Pilot Duty Contacts (VA) | 125 VA |
| Locked Rotor Amps @ 120V | 36 A |
| Inductive Amps @ 208V | 10 A |
| Depth | 3 in |
| Mounting Type | Vertical |
| Enclosure Type | NEMA 1 |
| Thermostat Heating/Cooling | Heating/Cooling |
| Thermostat Programmable | No |
| Item | Line Volt Mechanical Tstat |
| Full Load Amps @ 240VAC | 3 A |
| Control Range | 40 Degrees to 90 Degrees F |
| Thermostat Type | Line Voltage |
| Input Voltage | 120 to 277VAC |
| Application | Heat and Cool |
| Mounting | Wall |
| Number of Relay Outputs | 1 |
| Type | Heating/Cooling |
| Voltage Range | 24 to 277VAC |
| Control Type | Exposed Dial |
| Features | Line Voltage Components Switch Box Mounted Which Provides Isolation of Electrical Circuit From Sensing Element, Mounting Plate Allows Easy Mounting and Wiring without Removing the Cover, Enclosed Pennswitch Provides Dust Protection for Contacts |
| Overall Height | 5 in |
| Overall Width | 3 in |
| Housing Material | Plastic |
| System Settings | Auto |
| Enclosure Color | Beige |
| Full Load Amps @ 120V AC | 6 A |
| Contact Type | Snap Action |
| Number of Cooling Stages | 1 |
| Temperature Readout | No |
| Changeover Type | Automatic and Manual |
| Number of Poles | 1 |
| Mounting Direction | Vertical |
| Pilot Duty Rating | 125 VA |
| Maximum Control Temperature | 90 Degrees F |
| Enclosure Finish | Gold Anodized |
| Temperature Differential | 0.7 Degrees F |
| Full Load Amps @ 240V AC | 3 A |
| Electrical Connection Type | Screw Terminals |
| Switch Type/Action | SPDT, Open/Close on Rise |
| Number of Heating Stages | 1 |
| Remote Control Functions | No Remote Control Included |
| Temperature Control Range | 40 Degrees to 90 Degrees F |
| Overall Depth | 3 in |
| Enclosure NEMA Rating | NEMA 1 |
| Temperature Scale | Fahrenheit/Celsius |
| Includes Positive Off | No |
| Compatible System Type | Electric Cooling, Electric Heating |
| Differential Type | Fixed |
| Housing Color | White |
| Contact Rating | 120V AC, 208V AC, 240V AC, 277V AC |
| Minimum Control Temperature | 40 Degrees F |
| Stages | 1H/1C |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

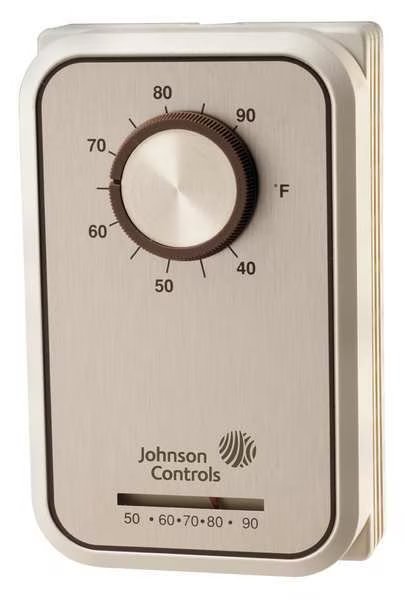

Line Volt Mechanical Tstat, Open/Close on Rise and Open/Close on Fall, JOHNSON CONTROLS, Mfr# T26S-22C
$154,24
-20% / ea
with subscription
Free shipping will be applied on orders over $50
Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 40 Degrees to 90 Degrees F, Thermostat Voltage 24 to 277V AC, Full Load Amps @ 120VAC 15 A, Full Load Amps @ 240VAC 3 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 2, Differential 0.7 Degrees F, Height 5 in, Width 3 in, Depth 3 in, Sensor Type Bi-Metallic Spring
9999 in stock
Must order in multiples of 1
Subtotal:
$154.24
