| Property | Value |
|---|---|
| Item | Linear Bearing |
| Material | UHMWPE |
| Flange Thickness (In.) | 0.375 in |
| Finish | Anodized |
| Overall Length (In.) | 2.812 in |
| Slot Width (In.) | 0.32 in |
| Dimension C (In.) | 2.5 in |
| Dimension F (In.) | 0.375 in |
| Width | 4.0 |
| Locking Type | Optional |
| Dimension B (In.) | 0.5 in |
| Dimension A (In.) | 1.5 in |
| Mounting Hole (In.) | 0.328 in |
| Bearing Type | Standard Linear |
| Body Width (In.) | 4 in |
| Lubrication | Dry |
| For Use With | 15 Series |
| Dimension K | 1.25 in |
| Overall Height (In.) | 1.875 in |
| Dimension P | 0.656 in |
| Dimension L (In.) | 1.875 in |
| Dimension D (In.) | 0.64 in |
| Color | Silver |
| Dimension H (In.) | 0.75 in |
| Dimension G (In.) | 4 in |
| Overall Width (In.) | 4 in |
| Dimension M (In.) | 1.5 in |
| Bolt Size | 5/16-18 |
| Height | 1.875 |
| Dimension E (In.) | 1.235 in |
| Mounting Hole Dia. (In.) | 0.328 in |
| Mounting Hole Center (In.) | 1.5 in |
| Mounting Bolt (In.) | 5/16-18 |
| Type | Double Flange |
| Overall Width | 4 in |
| Series | 15 Series |
| Pad Material | UHMW Plastic |
| Product Type | Linear Bearing |
| Compatible Product Type | 15 Series |
| Housing Material | Aluminum |
| Overall LxWxH | 2 13/16 in x 4 in x 1 7/8 in |
| System of Measurement | Inch |
| Pad Type | Standard |
| Bearing Profile | Double Flanged |
| For Number of Slots | 3 |
| Compatible Brand and Series | 15 Series |
| Overall Height | 1 7/8 in |
| Flange Thickness | 3/8 in |
| Overall LxW | 2 13/16 in x 4 in |
| Mounting Hole Diameter | 21/64 in |
| Overall Length | 2 13/16 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

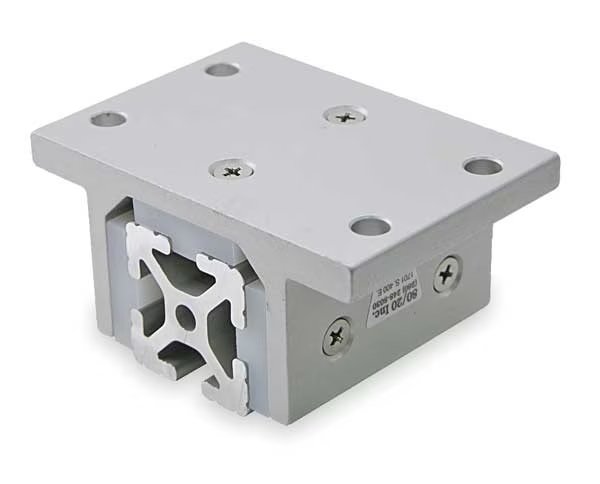

Linear Bearing, 4.000 In W, 2.812 In L, 80/20, Mfr#: 6525
$89.95
Free shipping will be applied on orders over $50
Linear Bearing, Standard Linear, Overall Height 1 7/8 in, Overall Length 2 13/16 in, Overall Width 4 in, Housing Material Aluminum, Mounting Hole Diameter 21/64 in, Anodized, Silver, System of Measurement Inch, 15 Series, Double Flanged, For Number of Slots 3, Standard, Flange Thickness 3/8 in, Pad Material UHMW Plastic, Compatible Brand and Series 15 Series
9999 in stock
