| Property | Value |
|---|---|
| Connection Size (In.) | 1 FNPT |
| Switch Type | SPDT |
| Voltage | 24V DC |
| Max. Pressure | 200 psi |
| Flow Rate | 8 to 60 gpm |
| Min. Fluid Temp. (F) | -20 Degrees F |
| Max. Fluid Temp. (F) | 212 Degrees F |
| Recommended Filtration (microns) | 150 micron |
| Material of Construction | Brass, Ceramic, Polysulfone, PPS Composite, Viton |
| Body Material | Brass |
| Min. Ambient Temp. (F) | -20 Degrees |
| Contact Rating | 35mA/95mA |
| Item | Liquid Flow Switch |
| Max. Ambient Temp. (F) | 150 Degrees F |
| Type | Rotor |
| Float Switch Contact Form | SPDT |
| Max. Pressure (PSI) | 200 psi |
| Standards | CE Certified, UL Listed |
| Overall Length | 2 in |
| Housing Material | Brass |
| Switch Position | Normally Closed, Normally Open |
| Media Temperature - Maximum | 212 Degrees F |
| Filter Rating - Maximum | 150 micron |
| Flow Rate - Maximum | 60 gpm |
| Connection Type | FNPT |
| Overall Width | 3.9 in |
| Media Temperature - Minimum | -20 Degrees F |
| Set Point Configuration | Adjustable |
| Contact Rating (DC) | 20 mA @ 24V |
| Ambient Temperature - Minimum | -20 Degrees F |
| Wetted Material | Brass, Ceramic, Polysulfone, Viton |
| Flow Switch Type | Hall Effect |
| Overall Height | 2.4 in |
| Connection Size | 1 in |
| Ambient Temperature - Maximum | 212 Degrees F |
| Flow Rate - Minimum | 8 gpm |
| Contact Rating (AC) | 45 mA @ 115V (No Load), 95 mA @ 115V (Load - Relay Energized) |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

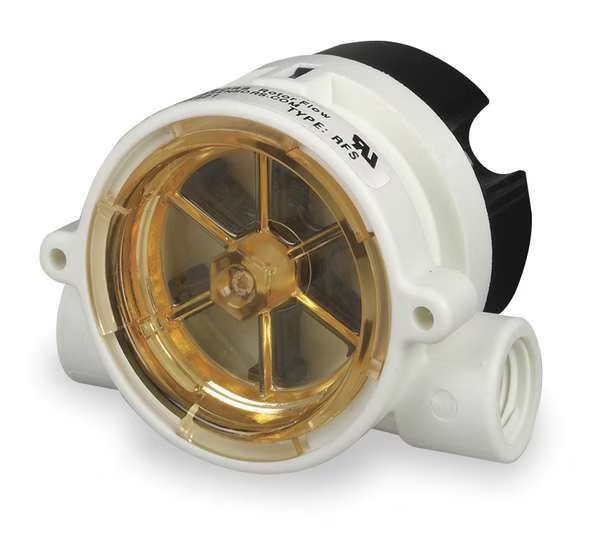

1" FNPT SPDT Liquid Flow Switch 24VDC 8 to 60 gpm, Gems Sensors, Mfr#: RFS, 181688
$454.99
Free shipping will be applied on orders over $50
Liquid Flow Switch, Ambient Temperature - Maximum 212 Degrees F, Ambient Temperature - Minimum -20 Degrees F, Connection Size 1 in, Connection Type FNPT, Contact Rating (AC) 45 mA @ 115V (No Load), 95 mA @ 115V (Load - Relay Energized), Contact Rating (DC) 20 mA @ 24V, Filter Rating - Maximum 150 micron, Flow Rate - Maximum 60 gpm, Flow Rate - Minimum 8 gpm, Flow Switch Type Hall Effect, Housing Material Brass, Media Temperature - Maximum 212 Degrees F, Media Temperature - Minimum -20 Degrees F
9999 in stock
