| Property | Value |
|---|---|
| Item | Keyless Bushing |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| Keyless Bushing Series | AS |
| For Shaft Dia. - Bushings | 1 3/8 in |
| Outside Dia. (In.) | 2.365 |
| Overall Length | 0.773 in |
| Material - Bushings | Carbon Steel |
| Transmissible Torque | 550 ft-lb |
| Bolt Size | M6 x 18 |
| Locking Bolt Quantity | 10 |
| Outside Dia. | 2.365 in |
| Shaft Dia. (In.) | 1.3750 |
| Shaft Dia. Tolerance | -0.0015 in |
| Outside Dia. Tolerance | +0.0015 in |
| Hub Contact Pressure (PSI) | 15,360 |
| Transmissible Torque (Ft.-Lbs.) | 550 |
| Overall Length (In.) | 0.7730 |
| Withstand Temp. (Deg. F) | -22 Degrees to 400 Degrees F |
| Transmissible Thrust (Lbs.) | 9,460 |
| Material | Carbon Steel |
| Overall Width | 0.773 in |
| Outside Diameter Tolerance | +0.0015 in |
| Material u0026 Finish | Carbon Steel |
| Flange Type | Not Applicable |
| Screw Thread Size | M6 x 18 |
| System of Measurement | Inch |
| Outside Diameter | 2 23/64 in |
| For Bore Diameter | 1 3/8 in |
| Hub Contact Pressure | 15,360 psi |
| Maximum Transmitted Torque | 550 ft-lb |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

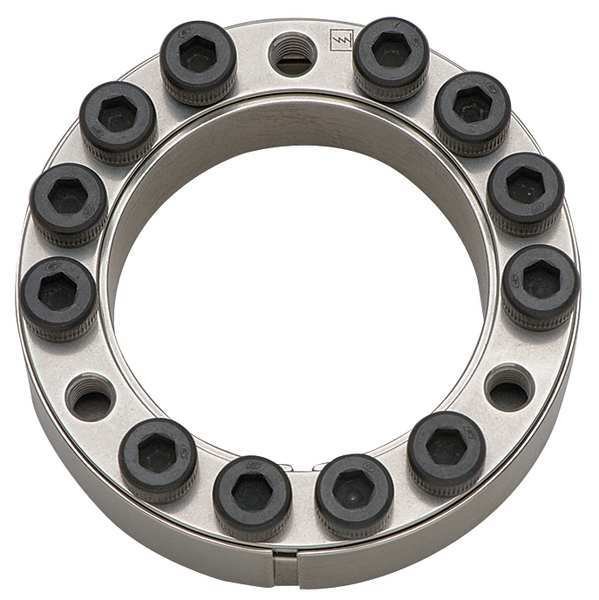

Power Lock(R), Dia 1.375 In, Tsubaki, Mfr#: PL1F
$86.99
Free shipping will be applied on orders over $50
Keyless Bushing, Flange Type Not Applicable, For Bore Diameter 1 3/8 in, Keyless Bushing Type Multi-Screw Locking Assembly, Material Carbon Steel, Outside Diameter 2 23/64 in, Overall Width 0.773 in, System of Measurement Inch, Hub Contact Pressure 15,360 psi, Maximum Transmitted Torque 550 ft-lb, Outside Diameter Tolerance +0.0015 in
9999 in stock
