| Property | Value |
|---|---|
| Item | 80 Series Thermostats |
| Voltage | 24VAC |
| Stages Heat | 2 |
| Mounting Type | Horizontal |
| Color | Gray |
| Control Range | 45 Degrees to 99 Degrees F |
| System Switching | Auto |
| Stages Cool | 1 |
| Height | 3 3/4 |
| Width | 6 |
| Dual Transformer Compatible | Yes |
| Power Method | Hardwired/Battery |
| 750mV Compatible | Yes |
| Batteries Included | Yes |
| Terminal Designations | RC, RH, C, W/E, W2, Y, Y2, O/B/6, G, L |
| Features | Continuous Backlight |
| Automatic Changeover | Yes |
| Temporary Program Override | Yes |
| Filter Indicator | No |
| Temperature Limiting | Yes |
| Display Color | Gray |
| Fan Switching | Auto-On |
| Depth | 1 1/8 in |
| Temporary Temperature Hold | Yes |
| Key Pad Lockout | Yes |
| Programmable Fan | No |
| Temp. Settings per Day | 0 |
| Low Battery Indicator | Yes |
| Agency Compliance | Energy Aware |
| Battery Backup | Yes |
| Humidification Control | No |
| Dehumidification Control | No |
| Display Type | Digital |
| Standards | Energy Aware |
| Control Type | Push Button |
| Stages | 2H/2C Conventional, 2H/2C Heat Pump |
| Application | Heat and Cool |
| Includes Positive Off | Yes |
| Filter Change Reminder | No |
| Maximum Operating Temperature | 150 Degrees F |
| Number of Heating Stages - Heat Pump System | 1 |
| Overall Height | 3 3/4 in |
| Maximum Operating Humidity | 90 % |
| Minimum Control Temperature | 45 Degrees F |
| Millivolt Compatible | Yes |
| Maximum Control Temperature | 99 Degrees F |
| Number of Zones | 1 |
| Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Amperage | 2.5 A |
| Minimum Operating Temperature | -40 Degrees F |
| Changeover Type | Automatic |
| Fan Settings | Auto |
| Mounting Direction | Horizontal |
| Digit Size | Easy Read |
| Frequency | 50 Hz, 60 Hz |
| Electrical Connection Type | Hardwired |
| Programming Capability | Not Programmable |
| System Settings | Auto |
| Number of Heating Stages - Conventional System | 2 |
| Overall Depth | 1 1/8 in |
| Housing Material | Plastic |
| Mounting Direction/Shape | Horizontal |
| Temperature Control Range | 45 Degrees to 99 Degrees F |
| Shape | Rectangle |
| System/Fan Settings | Auto/Auto |
| Temperature Differential | 0.5 Degrees to 1.2 Degrees F |
| Differential Type | Adjustable |
| Operating Humidity Range | 0% to 90% |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Millivolt |
| Overall Width | 6 in |
| Minimum Operating Humidity | 0 % |
| Number of Cooling Stages - Conventional System | 2 |
| Backlit Type | Key Press or Continuous with Common Wire |
| Housing Color | Gray |
| Temperature Scale | Fahrenheit/Celsius |
| Number of Cooling Stages - Heat Pump System | 2 |
| Thermostat Type | Low Voltage |
| Output Signal | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

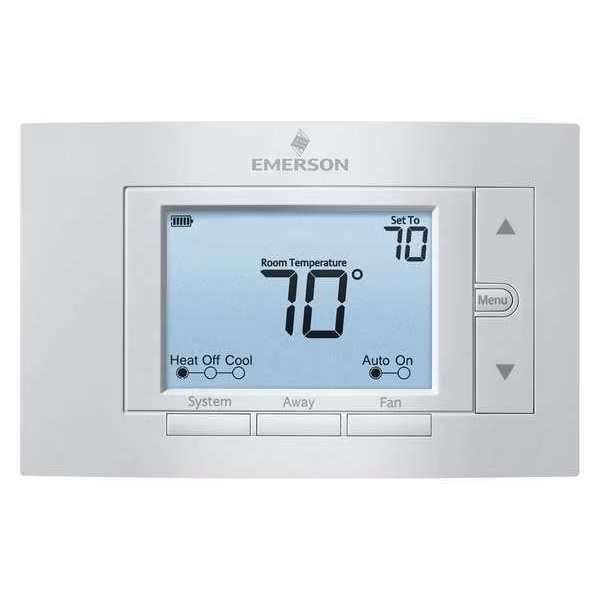

80 Series Thermostats, 2 H 1 C, Hardwired/Battery, 24VAC, White-Rodgers, Mfr#: 1F85U-22NP
$50.08
Free shipping will be applied on orders over $50
Low Voltage Thermostat, Heat and Cool, Automatic, Compatible System Type Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Millivolt, Push Button, Dehumidification Control No, Differential Type Adjustable, Digit Size Easy Read, Digital, Dual Transformer Compatible Yes, Fan Settings Auto, Humidification Control No, Includes Positive Off Yes, Minimum Control Temperature 45 Degrees F, Maximum Control Temperature 99 Degrees F
9999 in stock
Subtotal:
$50.08
