| Property | Value |
|---|---|
| Promotion Restriction | Not eligible for promotion |
| Item | Engine-Driven Welder |
| Series | Big Blue 800 Duo Pro |
| Start Type | Electric |
| Rated Output CC/DC | 800 A @ 38 V, 100% |
| Amperage Range | 20 to 800 |
| Continuous Auxiliary Power | 12,000 W |
| Peak Auxiliary Power | 27,000 W |
| Engine Brand | Deutz |
| HP | 65.7 hp |
| Fuel Type | Diesel |
| Width | 28 1/2 in |
| Depth | 69 1/2 in |
| Phase | Three-Phase |
| Height | 46 in |
| Includes | Air Cleaner Restriction Indicators, ArcReach Remote Control Technology, FA-1D Lockable Flame Arrestor Fuel Cap, Spark Arrestor, Vandalism Lockout Kit |
| Standards | CSA Certified |
| Overall Depth | 69.5 in |
| Welding Processes | Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| Overall Height | 46 in |
| Overall Width | 28.5 in |
| Application | Construction, Fabrication, Maintenance and Repair |
| Air Compressor Delivery | 40 CFM @ 100 psi (Idle), 60 CFM @ 100 psi (Weld) |
| Stick Welding Output @ Duty Cycle | 400 A @ 36 V, 100% (Dual), 700 A @ 44 V, 100% (Combined), 800 A @ 38 V, 100% (Combined) |
| Horsepower | 66 hp |
| TIG Welding Output @ Duty Cycle | 400 A @ 36 V, 100% (Dual), 700 A @ 44 V, 100% (Combined), 800 A @ 38 V, 100% (Combined) |
| Sound Level | 71.3 dB @ 23 ft, 78.9 dB @ 23 ft |
| Stick Welding Minimum Output Current | 20 A (Dual), 40 A (Combined) |
| Welder Type | Truck Mount |
| Fuel Tank Capacity | 25 gal |
| Max. Amperage Range (Stick) | Greater than 300 A |
| Oil Capacity | 8 1/2 qt |
| Generator Outlets | 20 A 120V GFCI 5-20R (4), 20 A 240V L6-30R (2), 50 A 120/240V 14-50R, 50 A 240V 15-50R |
| Horsepower Range | Greater than 30 hp |
| TIG Welding Minimum Output Current | 20 A (Dual), 40 A (Combined) |
| Welding Mode | CC/CV |
| Fuel Tank Capacity Range | Greater than 20 gal |
| Maximum Pressure - Air Compressor | 100 psig |
| Rated Output at Duty Cycle (Stick) | 400 A @ 100%, 700 A @ 100%, 800 A @ 100% |
| Engine Model | Deutz TD2.9 L4 |
| Weight | 2,095 lb |
| Generator Fuel Type | Diesel |
| Polarity | DC |
| Open Circuit Voltage | 85 V DC |
| Circuit Breaker | Yes |
| For Material Type | Stainless Steel, Steel |
| TIG Welding Maximum Output Current | 800 A |
| Stick Welding Maximum Output Current | 800 A |
| Coolant Tank Capacity | 16 qt |
| Generator Outlet Type | 14-50R, 15-50R, 5-20R, L6-30R |
| Enhanced Process | Pulsed MIG (GMAW-P), RMD |
| MIG Welding Output @ Duty Cycle | 400 A @ 34 V, 100% (Separate), 750 A @ 40 V, 100% (Combined), 800 A @ 38 V, 100% (Combined) |
| MIG Welding Maximum Output Current | 800 A |
| Model | 907752001 |
| Process | Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
| brand-mfr model | MILLER ELECTRIC - 907752001 |
| Welder Model Type | Truck Mount |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

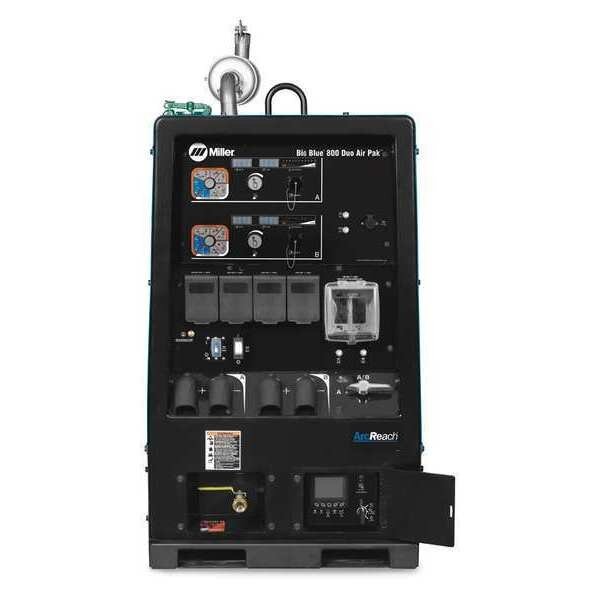

Engine Driven Welder, Big Blue(R) 800 Duo Air Pak(TM) Series, Electric Start, 65.7 hp, Diesel, Miller Electric, Mfr#: 907752001
$91637.99
Free shipping will be applied on orders over $50
Engine-Driven Welder, For Material Type Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 800 A, MIG Welding Output @ Duty Cycle 400 A @ 34 V, 100 Percent (Separate), 750 A @ 40 V, 100 Percent (Combined), 800 A @ 38 V, 100 Percent (Combined), Phase Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 800 A, Stick Welding Minimum Output Current 20 A (Dual), 40 A (Combined)
