Promotion Restriction | Not eligible for promotion |
Item | TIG Welder |
Welder Industrial Class | Medium |
Welding Processes | Pulsed TIG, Stick, TIG |
Mild Steel - Material Thickness | 0.004 in to 1/4 in |
Aluminum - Material Thickness | 0.012 in to 3/8 in |
Input Voltage | 120 to 480V AC |
Rated Output | 210A @ 18V |
Welder Max. Output Amps | 210 |
Welder Min. Output Amps | 1 |
Welder Duty Cycle | 60 % |
Series | Maxstar 210 |
Overall Height | 13 39/64 in |
Overall Depth | 19 1/2 in |
Welded Material | Mild Steel, Stainless Steel |
Features | Blue Lightning(TM) HF, Fan-On-Demand(TM), Hot Start(TM), Operator Friendly Interface, Pro-Set(TM) |
Welder Input Phase | 1 or 3 |
Welder Input Hz | 50/60 |
Overall Width | 8 39/64 in |
Polarity | DC |
Input (Amps) | 26/6 |
Power Source Weight | 38 lb |
Application | Aerospace, Dairy, Food and Beverage Industry, Petro Chemical, Precision Fabrication, Shipboard |
Includes | (2) 50 mm Dinse style connectors, 8 ft (2.4 m) primary cord, Adjustable shoulder strap, Maxstar(R) 210 |
Stick Welding Maximum Output Current | 210 A |
Max. Input Current | 15 A @ 208V (Three-Phase), 26 A @ 208V (Single-Phase) |
Input Voltage (Nominal) | 120V, 208V, 240V, 400V, 480V |
Stick Welding Output @ Duty Cycle | 160 A @ 26.4 V, 60%, 90 A @ 23.6 V, 60% |
Rated Output at Duty Cycle (TIG) | 210 A @ 60% |
Remote Connection Type | 14-Pin (Miller) |
Kit Includes | Power Source Only |
Power Cord Length | 8 ft |
Plug Type | Bare Leads |
Welder Kit Type | Power Source Only |
Power Cord Included | Yes |
For Minimum Material Thickness | 0.002 in |
Input Frequency | 50/60 Hz |
TIG Welding Output @ Duty Cycle | 210 A @ 18.4 V, 60%, 125 A @ 15 V, 60% |
TIG Arc Start Feature | High Frequency Start, Lift Arc Start |
Stick Welding Minimum Output Current | 5 A |
Open Circuit Voltage | 80V DC |
For Material Type | Specialty Metals, Stainless Steel, Steel |
Weight | 38 lb |
Remote Control | Remote Control Not Included |
For Maximum Material Thickness | 1/4 in |
Amperage Range | 1 to 210 A |
Color | Blue |
Welding Mode | CC |
TIG Welding Minimum Output Current | 1 A |
TIG Welding Maximum Output Current | 210 A |
Max. Amperage Range (TIG) | 150 A - 300 A |
Model | 907683 |
Process | Stick Welding (SMAW), TIG Welding (GTAW) |
brand-mfr model | MILLER ELECTRIC - 907683 |
Country of Origin (subject to change) | United States |
Package Quantity | 1 |
- You cannot add "GIFT BOX" to the cart because the product is out of stock.

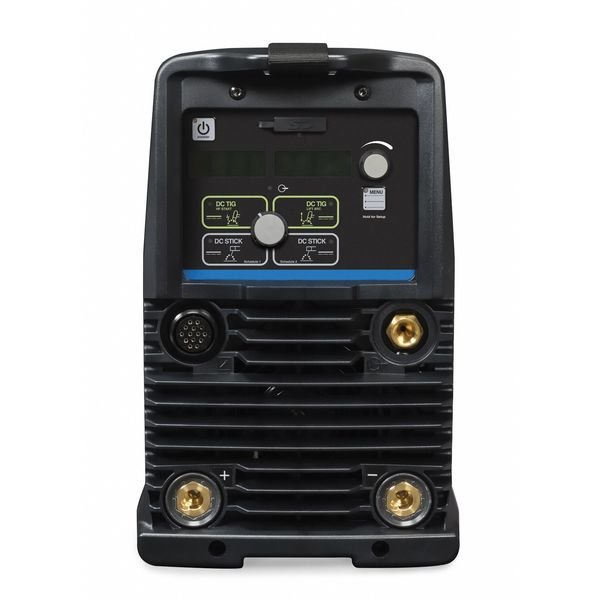

Tig Welder, Maxstar 210 Series, 120 to 480V AC, 210 Max. Output Amps, 210A @ 18V Rated Output, MILLER ELECTRIC, Mfr# 907683
$4901,99
-$148.03 / ea
with subscription
Free shipping will be applied on orders over $50
TIG Welder, For Material Type Specialty Metals, Stainless Steel, Steel, For Maximum Material Thickness 1/4 in, For Minimum Material Thickness 0.002 in, Input Frequency 50/60 Hz, Max. Input Current 15 A @ 208V (Three-Phase), 26 A @ 208V (Single-Phase), Phase Single-/Three-Phase, Polarity DC, Series Maxstar 210, Stick Welding Maximum Output Current 210 A, Stick Welding Minimum Output Current 5 A, Stick Welding Output @ Duty Cycle 160 A @ 26.4 V, 60 Percent, 90 A @ 23.6 V, 60 Percent
9999 in stock
Must order in multiples of 1
Subtotal:
$4901.99
