Promotion Restriction | Not eligible for promotion |
Welder Industrial Class | Medium |
Item | TIG Welder |
Welding Processes | Pulsed TIG, Stick, TIG |
Mild Steel - Material Thickness | 0.004 in to 3/8 in |
Input Voltage | 208 to 575V AC |
Rated Output | 235A @ 19V |
Welder Max. Output Amps | 280 |
Welder Min. Output Amps | 1 |
Welder Duty Cycle | 60 % |
Series | Maxstar 280 |
Overall Height | 13 5/8 in |
Polarity | AC/DC |
Includes | (2) 50 mm Dinse style connectors, 8 ft (2.4 m) primary cord, Adjustable shoulder strap, Maxstar(R) 280 DX |
Power Source Weight | 47 lb |
Input (Amps) | 28/26/15/13/10 |
Overall Depth | 22 1/2 in |
Welder Input Hz | 50/60 |
Application | Aerospace, Boat / Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding |
Welder Input Phase | 1 or 3 |
Overall Width | 8 5/8 in |
Welded Material | Steel |
Features | Built-In Pulser, HF Arc Starting, Hot-Start(TM) for stick, Inverter-Based DC Power Source, Memory Card Expandable, Portable, Pro-Set(TM), Programmable HF Start Parameters, Stick-Stuck Detect |
Weight | 50 lb |
Plug Type | Bare Leads |
Welding Mode | CC |
Max. Input Current | 20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase) |
Input Voltage (Nominal) | 208V, 240V, 400V, 480V, 575V |
Stick Welding Maximum Output Current | 280 A |
Power Cord Length | 8 ft |
Input Frequency | 50/60 Hz |
Stick Welding Output @ Duty Cycle | 235 A @ 19 V, 60% |
Max. Amperage Range (TIG) | 150 A - 300 A |
Power Cord Included | Yes |
Color | Blue/Black |
Remote Control | No |
Amperage Range | 1 to 280 A |
TIG Welding Minimum Output Current | 1 A |
Kit Includes | Power Source Only |
For Material Type | Specialty Metals, Stainless Steel, Steel |
Welder Kit Type | Power Source Only |
TIG Welding Output @ Duty Cycle | 235 A @ 19 V, 60% |
TIG Welding Maximum Output Current | 280 A |
Rated Output at Duty Cycle (TIG) | 250 A @ 60% |
Open Circuit Voltage | 60V DC |
For Maximum Material Thickness | 3/8 in (Steel) |
Stick Welding Minimum Output Current | 1 A |
For Minimum Material Thickness | 0.004 in (Steel) |
Model | 907539 |
Process | Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW) |
brand-mfr model | MILLER ELECTRIC - 907539 |
Country of Origin (subject to change) | United States |
Package Quantity | 1 |

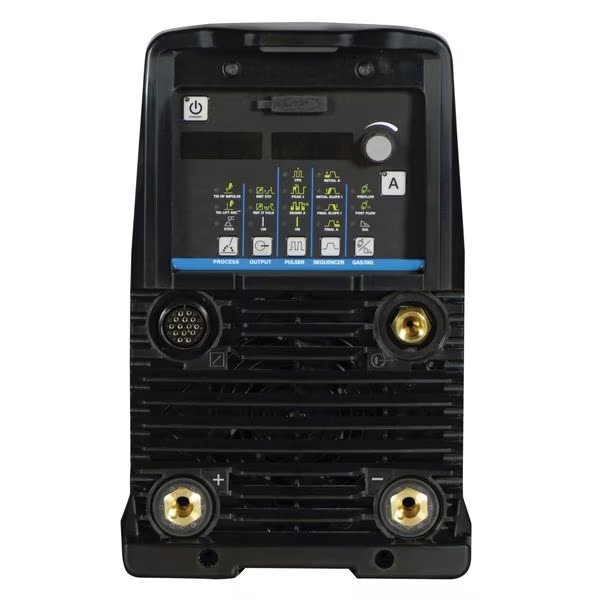

Tig Welder, Maxstar 280 DX with CPS Series, 208 to 575V AC, 280 Max. Output Amps, MILLER ELECTRIC, Mfr# 907539
$9147,99
Free shipping will be applied on orders over $50
TIG Welder, For Material Type Specialty Metals, Stainless Steel, Steel, For Maximum Material Thickness 3/8 in (Steel), For Minimum Material Thickness 0.004 in (Steel), Input Frequency 50/60 Hz, Max. Input Current 20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase), Phase Single-/Three-Phase, Polarity AC/DC, Series Maxstar 280, Stick Welding Maximum Output Current 280 A, Stick Welding Minimum Output Current 1 A, Stick Welding Output @ Duty Cycle 235 A @ 19 V, 60 Percent
