Welder Industrial Class
Medium
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Mild Steel - Material Thickness
0.004 in to 3/8 in
Input Voltage
208V AC, 220/230/240V AC, 380/400V AC, 460/480V AC, 575V AC
Welder Max. Output Amps
280
Input (Amps)
28/26/15/13/10
Features
Built-In Pulser, HF Arc Starting, Hot-Start(TM) for stick, Inverter-Based DC Power Source, Memory Card Expandable, Portable, Pro-Set(TM), Programmable HF Start Parameters, Stick-Stuck Detect
Includes
Power Source Only
Application
Aerospace, Boat / Yacht, Construction, Heavy Equipment Manufacturing, High Purity Processing, Infrastructure, Manufacturing, Railcar, Shipbuilding
Stick Welding Maximum Output Current
280 A
TIG Welding Minimum Output Current
1 A
Rated Output at Duty Cycle (TIG)
250 A @ 60%
Stick Welding Minimum Output Current
1 A
Input Voltage (Nominal)
208V, 240V, 400V, 480V, 575V
For Maximum Material Thickness
3/8 in (Steel)
Open Circuit Voltage
60V DC
Welder Kit Type
Power Source Only
Max. Amperage Range (TIG)
150 A - 300 A
Stick Welding Output @ Duty Cycle
235 A @ 19 V, 60%
For Minimum Material Thickness
0.004 in (Steel)
Max. Input Current
20 A @ 208V (Three-Phase), 30 A @ 208V (Single-Phase)
Kit Includes
Power Source Only
TIG Welding Output @ Duty Cycle
235 A @ 19 V, 60%
For Material Type
Specialty Metals, Stainless Steel, Steel
TIG Welding Maximum Output Current
280 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)

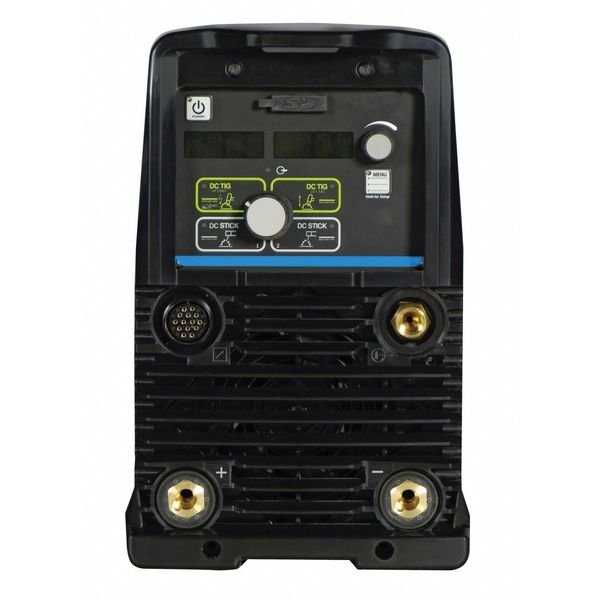

brand-mfr model
MILLER ELECTRIC - 907552
Country of Origin (subject to change)
United States
