| Property | Value |
|---|---|
| Manufacturers Warranty Length | 1 yr |
| Item | Fan and Blower Motor |
| Frame | 48Z |
| Full Load Amps | 5.0 A |
| Motor Shaft Rotation | CCW |
| Motor Application | Fan and Blower |
| Motor Mounting Position | Horizontal |
| Standards | CSA, UL |
| Shaft Dia. | 1/2 in |
| Nominal Efficiency | 57.5 % |
| Phase | Single |
| Motor Design | Split-Phase |
| Body Dia. | 5 9/16 in |
| HP | 1/4 |
| Motor Frame Material | Rolled Steel |
| Motor Enclosure Design | Open Dripproof |
| Ins. Class | B |
| Motor Bearings | Ball |
| Motor Shaft Design | Flat |
| Motor Thermal Protection | None |
| Max. Ambient Temp. | 158 Degrees F |
| No. of Speeds | 1 |
| Motor Mounting Type | Resilient Base |
| Voltage Compatibility | 115V AC |
| Overall Length | 9 9/16 in |
| Nameplate RPM | 1,725 |
| Length Less Shaft | 7 11/16 in |
| Voltage | 115V AC |
| Motor Service Factor | 1.35 |
| Hz | 60 |
| Shaft Length | 2 in |
| RPM Range | 1800 |
| Weight | 14 lb |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

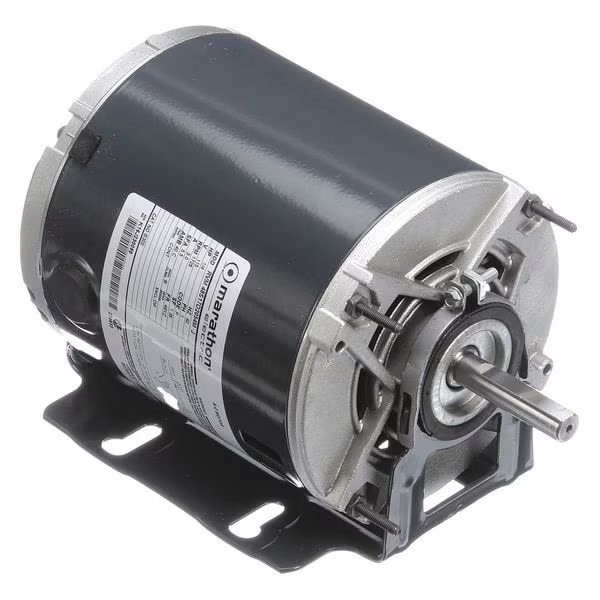

Split-Phase Fan and Blower Motor, 1/4 HP, 48Z Frame, 115V AC Voltage, 1,725 Nameplate RPM, Marathon Motors, Mfr#: 048S17D2054
$160.99
Free shipping will be applied on orders over $50
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 5.0 A Full Load Amps, 48Z Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 158 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Resilient Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in
9999 in stock
Subtotal:
$160.99
