| Item | Mechanical Connector |
| Connector Type | Dual Rated Lug |
| No. of Conductors | 1 |
| Min. Conductor Size | 6 AWG Stranded |
| Max. Conductor Size | 350 kcmil Stranded |
| Stud Size | 3/8 in |
| Insulation Material | None |
| Material | Aluminum |

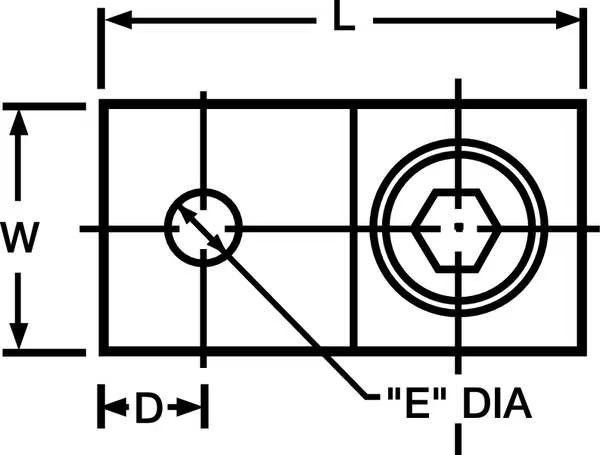

| Length | 2.25 in |
| Width | 0.13 in |
| Standards | UL Listed, UL486A/B |
| Head Style | Socket |
| No. of Holes | 1 |
| Body Material | Aluminum |
| Length (Straight Wireway) | 2.25 in |
| Wire Size Ranges | 6 AWG - 350 kcmil |
| For Stud Size | 3/8 in |
| Maximum Operating Temperature | 194 Degrees F |
| Contact Finish | Tin |
| Connection Orientation | Dual Rated Lug |

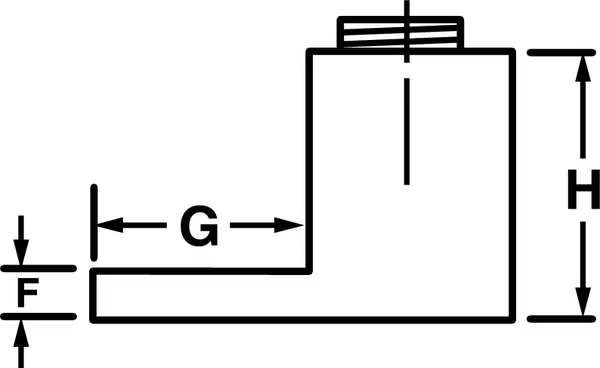

| Tongue Length | 1.13 in |
| UL Standard | UL 486A-486B |
| Number of Conductors | 1 |
| Overall Depth | 1 1/4 in |
| Tongue Thickness | 0.25 in |
| Hole Spacing | Not Applicable |
| Special Features | Easy Installation |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Tongue Width | 1.13 in |
| Overall Width | 0.13 in |
| For Wire Size | 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 6 AWG |
| Overall Length | 2.25 in |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| For Conductor Material | Aluminum, Copper |
| Number of Terminations | 1 |
| Hole Diameter | 0.38 in |
| Maximum Voltage | 1,000 V |
| Special Functions | Easy Installation - no special tools required. |
| Product Type | Dual-Rated Mechanical Connector |
| Surface Finishing | Tin-Plated |
| Product Name | BLACKBURN MECHANICAL |
| Standard | UL E9809 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
Mechanical Conn, Lug, 350 kcmil to 6 AWG, BLACKBURN, Mfr# ADR35
$4.84
Free shipping will be applied on orders over $50
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 350 kcmil, For Stud Size 3/8 in, Head Style Socket, Number of Holes 1, Hole Diameter 0.38 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.13 in, Tongue Width 1.13 in, Tongue Thickness 0.25 in
9999 in stock
Must order in multiples of 1
Subtotal:
$4.84
