Item

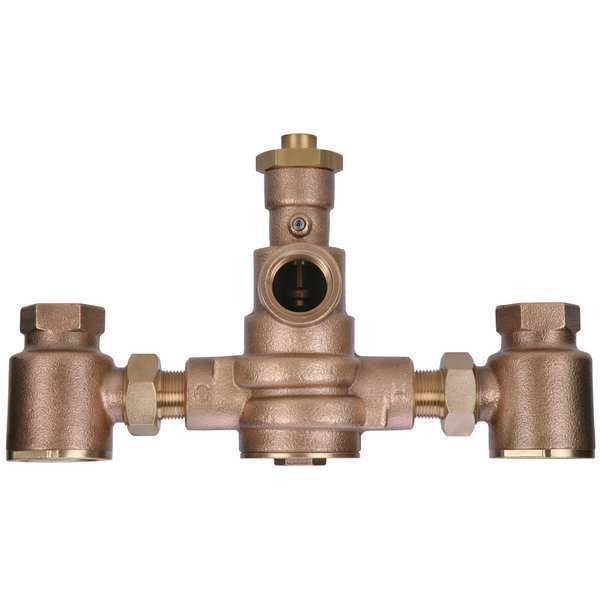

Hot Water Master Mixing Valve
Temp. Range
90 Degrees to 160 Degrees F
Standards
ASSE 1017, CSA B125
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
Inlet Temperature (Cold)
40 Degrees to 80 Degrees F
Material of Construction
Brass
Valve Type
Hot Water Master
Coefficient of Volume (Cv)
9.49
Inlet Connection Type - Cold
NPT
Inlet Temperature - Maximum Cold
80 Degrees F
Inlet Connection Gender - Cold
Female
Outlet Connection Type
NPT
Inlet Connection Type - Hot
NPT
Operating Pressure - Minimum
Not Applicable
Inlet Temperature - Minimum Cold
40 Degrees F
Inlet Connection Size - Hot
3/4 in
Includes Temperature Gauge
Temperature Gauge Not Included
Seal Material
Not Applicable
Outlet Connection Size
1 in
For Media
Hot Water, Water
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Maximum Hot
180 Degrees F
Operating Temperature - Maximum Outlet
160 Degrees F
Operating Temperature - Minimum Outlet
90 Degrees F
Operating Pressure - Maximum
125 psi
Inlet Connection Size - Cold
3/4 in
Country of Origin (subject to change)
United States
