| Item | Motor |
| Motor Sub Application | Agricultural Fan |
| Motor Design | 1-Phase Capacitor-Start |
| Phase | Single |
| HP | 7 1/2 |
| RPM Range | 1740 RPM |
| Voltage | 230V AC |
| Frame | 215T |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Manual |
| Motor Enclosure Design | Totally Enclosed |
| Nameplate RPM | 1,740 |
| Motor Application | Agricultural Fan Motor, Extra High Torque Farm Duty Motor |
| Motor Frame Material | Steel |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Reversible |
| Standards | CSA Certified, UR |
| Full Load Amps | 30.0 A |
| Item - Farm Duty Motors | Agricultural Fan Motor, Extra High Torque Farm Duty Motor |
| Nominal Efficiency | 86.1 % |
| Shaft Length | 3 1/2 in |
| Ins. Class | F |
| Hz | 60 Hz |
| Overall Length | 22 1/16 in |
| Shaft Dia. | 1 3/8 in |
| Duty | CONT |
| Motor Bearings | Ball |
| Length Less Shaft | 18 9/16 in |
| Capacitor Required | Yes |
| Max. Ambient Temp. | 40 Degrees C |
| No. of Speeds | 1 |
| Duty Cycle | Continuous |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

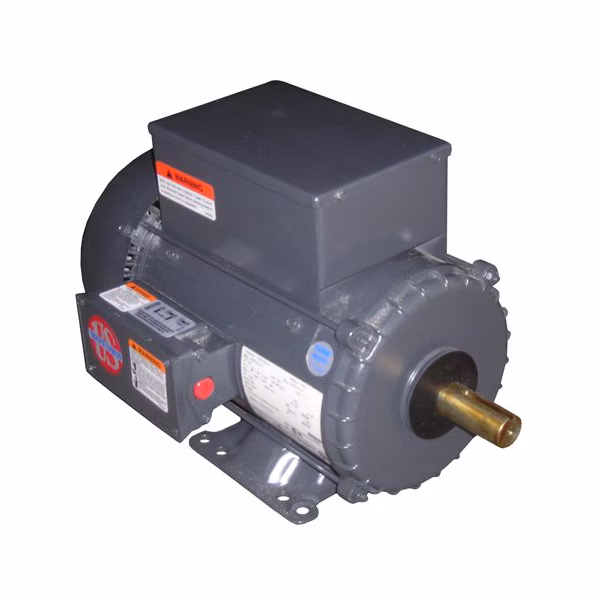

Motor, 7 1/2HP, 1740,230V, 215T, 7 1/2 HP HP, 230 V, 215T Frame, U.S. MOTORS, Mfr# FD7CM2K21
$1716,99
Free shipping will be applied on orders over $50
Motor, Single Phase, Motor Design 1-Phase Capacitor-Start, 7 1/2 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 30.0 A, 215T Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation Reversible, Motor Enclosure Design Totally Enclosed, Motor Frame Material Steel, Shaft Dia. 1 3/8 in, Shaft Length 3 1/2 in, Motor Shaft Design Keyed, Motor Bearings Ball
0 in stock
Must order in multiples of 1
Subtotal:
$1716.99
