| Property | Value |
|---|---|
| Nameplate RPM | 1,050 |
| Motor Shaft Rotation | CCWLE |
| Motor Enclosure Design | Open Air-Over |
| Application | Blowers, Fans and Air Circulators |
| Shaft Length | 5 1/2 in |
| Motor Bearings | Sleeve |
| Ins. Class | A |
| Length Less Shaft | 3 7/8 in |
| Body Dia. | 5 in |
| Standards | CSA Certified, UL Listed |
| Capacitor Required | No |
| Motor Mounting Type | Resilient Rings |
| Motor Service Factor | 1 |
| Full Load Amps | 3.0 A, 4.0 A, 6.5 A |
| HP | 1/10, 1/5, 1/8 |
| Motor Thermal Protection | Auto |
| Motor Application | Direct Drive Fan/Blower |
| Voltage | 115V AC |
| Max. Ambient Temp. | 40 Degrees C |
| Item | Direct Drive Fan/Blower Motor |
| Ring to Ring Center | 4 29/50 in |
| No. of Speeds | 3 |
| Motor Design | Shaded Pole |
| RPM Range | 1,001-1,100 |
| Frame | 42Y |
| Bolt Circle Dia. | 4 7/16 in |
| Motor Shaft Design | Flat |
| Mounting Stud Pattern | 3-1/8 |
| Motor Sub Application | Direct Drive Fan/Blower |
| Includes | Resilient Mounting Rings |
| Hz | 60 Hz |
| Phase | Single |
| Resilient Ring Dia. | 2 1/2 in |
| Motor Mounting Position | Horizontal |
| Duty | Continuous |
| Voltage Compatibility | 115V AC |
| Shaft Dia. | 1/2 in |
| Stud Size | #10-32 |
| Duty Cycle | Continuous |
| Lead Length | 35 in |
| Blade Material | Not Applicable |
| Overall Length | 9 3/8 in |
| Includes Blade | Not Applicable |
| Blade Finish | Not Applicable |
| Usable @ 200V | No |
| Weight | 11 lb |
| Mounting Stud Length | 14/25 in |
| Stud Quantity | 3 |
| Blade Diameter | Not Applicable |
| Usable @ 208V | No |
| Fan Mounting Type | Not Applicable |
| Motor Frame Material | Steel |
| Motor Flange Type | Ventilated |
| Output Watts | 0.15 kW |
| Conduit Box Position | Not Applicable |
| Inverter Rated | No |
| Bearing Protection | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

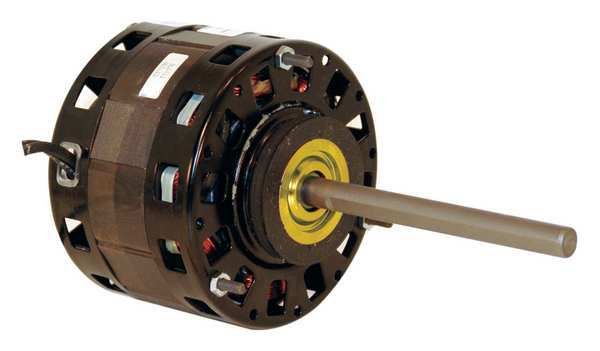

Motor, Sh Pole, 1/5 HP, 1050,115V, 42Y, OAO, Century, Mfr#: BL6414
$214.99
Free shipping will be applied on orders over $50
Direct Drive Fan/Blower Motor, Single Phase, Motor Design Shaded Pole, 1/10, 1/5, 1/8 HP, Nameplate RPM 1,050, No. of Speeds 3, Voltage 115V AC, 3.0 A, 4.0 A, 6.5 A Full Load Amps, Output Watts 0.15 kW, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Frame Material Steel, Inverter Rated No
9999 in stock
