| Property | Value |
|---|---|
| Full Load Amps | 13.2/7.2-6.6 A |
| Nameplate RPM | 1,725 |
| Item | Belt Drive Motor |
| HP | 1 1/2 |
| Body Dia. | 6 1/2 in |
| Motor Mounting Position | All Angle |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Frame Material | Steel |
| Hz | 60 Hz |
| Motor Sub Application | Belt Drive Fan/Blower |
| Shaft Length | 2 1/4 in |
| Motor Service Factor | 1.15 |
| RPM Range | 1,701-1,800 |
| Motor Design | Capacitor-Start |
| Ins. Class | B |
| Max. Ambient Temp. | 149 Degrees F |
| Standards | CSA Certified, UL Recognized |
| Phase | Single |
| Motor Bearings | Ball |
| Shaft Dia. | 5/8 in |
| Motor Thermal Protection | Auto |
| Frame Material | Rolled steel |
| Motor Application | HVAC/R |
| Length Less Shaft | 10 1/16 in |
| Voltage | 115/208-230V AC |
| Motor Enclosure Design | Open Dripproof |
| Frame | 56H |
| Motor Mounting Type | Rigid Base |
| Duty | Continuous |
| Motor Shaft Rotation | CW/CCW |
| No. of Speeds | 1 |
| Duty Cycle | Continuous |
| Motor Shaft Design | Keyed |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Capacitor Required | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

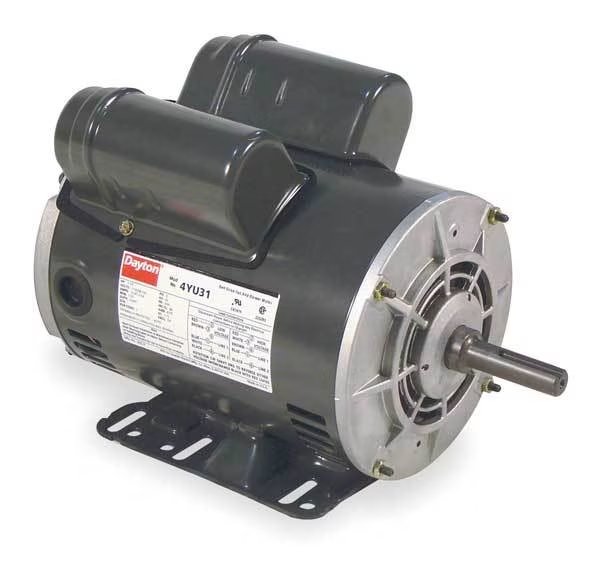

Motor, Cap St, 1.5 HP, 1725,115/208-230, 56H, EnjoyTool Select, Mfr#: 4YU31
$405.99
Free shipping will be applied on orders over $50
Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 13.2/7.2-6.6 A Full Load Amps, 56H Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 149 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
