| Property | Value |
|---|---|
| RPM Range | 1,701-1,800 |
| Length Less Shaft | 9 1/2 in |
| Ins. Class | B |
| Item | Belt Drive Motor |
| Resilient Ring Dia. | 2 1/2 in |
| Motor Bearings | Ball |
| Frame Material | Rolled steel |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Mounting Position | All Angle |
| Hz | 60 Hz |
| Motor Sub Application | Direct Drive Fan/Blower |
| No. of Speeds | 1 |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 104 Degrees F |
| Shaft Dia. | 5/8 in |
| Duty | Continuous |
| Nameplate RPM | 1,725 |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/208-230V AC |
| HP | 1 |
| Full Load Amps | 12.8/6.4-6.4 A |
| Shaft Length | 1 7/8 in |
| Frame | 56 |
| Body Dia. | 6 1/2 in |
| Standards | CSA Certified, UL Recognized |
| Phase | Single |
| Motor Mounting Type | Cradle Base |
| Ring to Ring Center | 9 1/8 in |
| Motor Application | HVAC/R |
| Motor Service Factor | 1.15 |
| Motor Frame Material | Steel |
| Mounting Stud Pattern | 4-1/4 in x 4-1/4 in |
| Duty Cycle | Continuous |
| Motor Shaft Design | Keyed |
| Usable @ 208V | Yes |
| Includes | Capacitor |
| Usable @ 200V | No |
| Capacitor Required | Yes |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

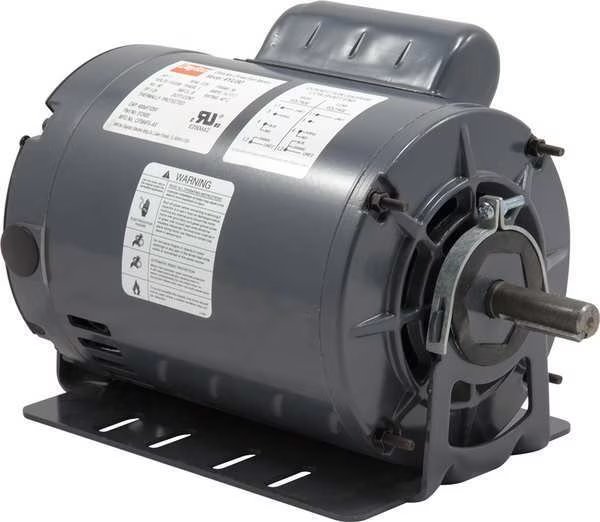

Mtr, Cap St, 1 HP, 1725,115/208-230V, 56, ODP, EnjoyTool Select, Mfr#: 4YU30
$445.99
Free shipping will be applied on orders over $50
Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 12.8/6.4-6.4 A Full Load Amps, 56 Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
9999 in stock
