| Promotion Restriction | Not eligible for promotion |
| Motor Mounting Position | All Angle |
| Standards | CSA Certified, UL Recognized |
| Ins. Class | A |
| Shaft Dia. | 3/8 in |
| Item | HVAC Motor |
| RPM Range | 1,501-1,600 |
| Length Less Shaft | 4 15/16 in |
| Motor Thermal Protection | Auto |
| Ring to Ring Center | 4 9/16 in |
| Mounting Stud Pattern | 2-1/2 in x 2-1/2 in |
| Motor Service Factor | 1 |
| Motor Mounting Type | Stud |
| Nameplate RPM | 1,550 |
| Motor Design | Shaded Pole |
| Shaft Length | 2 1/4 in |
| Resilient Ring Dia. | 2 1/4 in |
| Body Dia. | 5 in |
| No. of Speeds | 1 |
| Motor Sub Application | Refrigerator/Freezer |
| Frame | 42Y |
| Motor Shaft Rotation | CCWSE |
| Voltage | 115/208-230V AC |
| Mounting Stud Location | Shaft End |
| Includes | Extended Studs, Hex Nuts, Mounting Clamps, Mounting Ring Adaptors, Resilient Rings |
| Bolt Circle Dia. | 3 1/2 in |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| HP | 1/10 |
| Full Load Amps | 4.0/2.0 A |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Open Air-Over |
| Stud Size | #10-32 |
| Motor Shaft Design | Flat |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 40 Degrees C |
| Application | Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment |
| Phase | Single |
| Hz | 60 Hz |
| Capacitor Required | No |
| Duty | Continuous |
| Overall Length | 7 3/16 in |
| Usable @ 208V | Yes |
| Number of Shafts | 1 |
| Mounting Holes | (4) #10-32 |
| Lead Length | 29 in |
| Duty Cycle | Continuous |
| Weight | 10 lb |
| Usable @ 200V | No |
| Stud Quantity | 4 |
| Number of Speeds | 1 |
| Mounting | Cradle Base |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

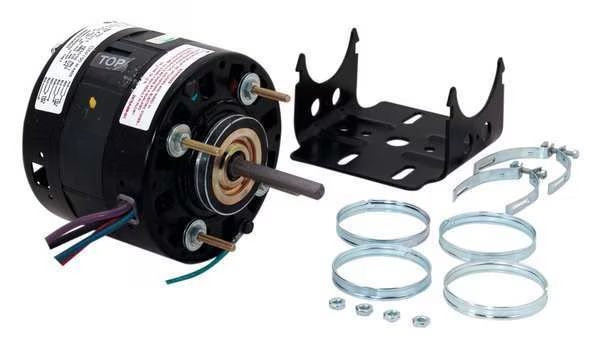

Mtr, Sh Pole, 1/10 HP, 1550,115/208-230, 42Y, CENTURY, Mfr# RF4401
$200,99
Free shipping will be applied on orders over $50
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/10 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.0/2.0 A, 42Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWSE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 29 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
0 in stock
Must order in multiples of 1
Subtotal:
$200.99
