| Motor Design | Split-Phase |
| Hz | 60 Hz |
| Phase | Single |
| Duty | Continuous |
| Motor Sub Application | Aeration Fan |
| Voltage | 115V AC |
| Motor Enclosure Design | Open Dripproof |
| Item | C-Frame Motor |
| Motor Bearings | Ball |
| Motor Application | HVAC/R |
| Full Load Amps | 5.0/3.0 A |
| Shaft Dia. | 5/8 in |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Ins. Class | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Frame | 56CZ |
| HP | 1/4, 1/12 |
| Length Less Shaft | 9 13/16 in |
| Standards | CSA Certified |
| Overall Length | 12 1/4 in |
| Nameplate RPM | 1,725/1,140 |
| RPM Range | 1,701-1,800 |
| Nominal Efficiency | 0.62 % |
| Shaft Length | 2 7/16 in |
| Motor Service Factor | 1.35 |
| Manufacturers Warranty Length | 1 yr |
| Application | C Face Vent, Designed for Use On Commercial and Industrial Ventilation Systems |
| Motor Shaft Design | Keyed |
| Capacitor Required | No |
| Motor Thermal Protection | Auto |
| No. of Speeds | 2 |
| Max. Ambient Temp. | 40 Degrees C |
| Usable @ 208V | No |
| Weight | 22 lb |
| Motor Frame Material | Steel |
| Stud Quantity | 4 |
| Usable @ 200V | No |
| Number of Shafts | 1 |
| Mounting Holes | (4) 3/8 in-16 |
| Body Dia. | 6 1/2 in |
| Duty Cycle | Continuous |
| Number of Speeds | 2 |
| Mounting | Face |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

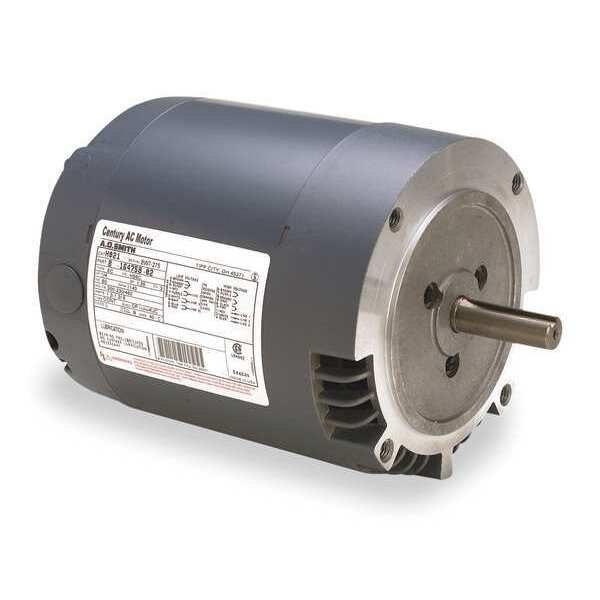

Motor, Split Ph, 1/4 HP, 1725,115V, 56CZ, ODP, CENTURY, Mfr# F393L
$266,99
-$8.01 / ea
with subscription
Free shipping will be applied on orders over $50
C-Frame Motor, Single Phase, Motor Design Split-Phase, 1/4, 1/12 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, Full Load Amps 5.0/3.0 A, 56CZ Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1.35, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position Horizontal, Number of Shafts 1
9999 in stock
Must order in multiples of 1
Subtotal:
$266.99
