| Promotion Restriction | Not eligible for promotion |
| Includes | Extended Studs, Resilient Rings |
| Nameplate RPM | 1,050 |
| Capacitor Required | No |
| HP | 1/15 |
| Motor Bearings | Sleeve |
| Hz | 60 Hz |
| Motor Enclosure Design | Totally Enclosed |
| Length Less Shaft | 4 3/16 in |
| Mounting Stud Location | Shaft End |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Ins. Class | B |
| Mounting Stud Pattern | 2-1/4 in x 3-7/8 in |
| Max. Ambient Temp. | 40 Degrees C |
| RPM Range | 1,001-1,100 |
| Phase | Single |
| Motor Sub Application | Direct Drive Fan/Blower |
| Bolt Circle Dia. | 4 7/16 in |
| Motor Shaft Design | Flat |
| Shaft Length | 1 3/4 in |
| Voltage | 115V AC |
| Item | Unit Heater Motor |
| Duty | Continuous |
| Application | Blowers, Fans and Air Circulators |
| Standards | CSA Certified, UL Recognized |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Body Dia. | 5 in |
| Motor Mounting Type | Stud |
| Motor Design | Shaded Pole |
| Stud Size | #8-32 |
| No. of Speeds | 1 |
| Shaft Dia. | 1/2 in |
| Motor Shaft Rotation | CCWLE |
| Motor Mounting Position | Horizontal |
| Frame | 42Y |
| Full Load Amps | 3 A |
| Motor Application | HVAC/R |
| Usable @ 208V | No |
| Weight | 8 lb |
| Number of Shafts | 1 |
| Overall Length | 6 3/4 in |
| Duty Cycle | Continuous |
| Usable @ 200V | No |
| Conduit Box Location | Exterior |
| Number of Speeds | 1 |
| Mounting | Ring |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

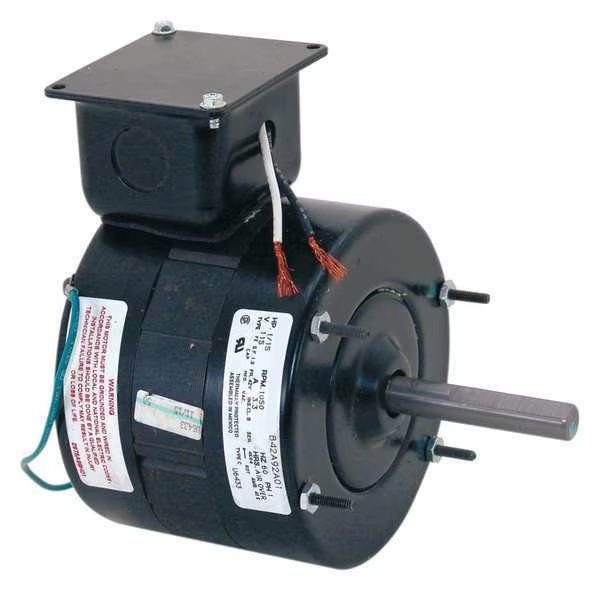

Motor, Sh Pole, 1/15 HP, 1050,115V, 42Y, TEAO, CENTURY, Mfr# U6433
$146,99
-3% / ea
with subscription
Free shipping will be applied on orders over $50
Unit Heater Motor, Single Phase, Motor Design Shaded Pole, 1/15 HP, Nameplate RPM 1,050, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed, Motor Mounting Type Stud, Motor Mounting Position Horizontal, Number of Shafts 1
9999 in stock
Must order in multiples of 1
Subtotal:
$146.99
