| Hz | 60 Hz |
| Item | Direct Drive Blower Motor |
| Body Dia. | 6 1/2 in |
| Includes | Resilient Base |
| Standards | CSA Certified, UL Recognized |
| Length Less Shaft | 9 1/2 in |
| Motor Shaft Design | Keyed |
| Ins. Class | B |
| Mounting Stud Location | Shaft End |
| No. of Speeds | 1 |
| Resilient Ring Dia. | 2 1/2 in |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Motor Design | Split-Phase |
| Duty | Continuous |
| Motor Thermal Protection | Auto |
| Bolt Circle Dia. | 5 13/16 in |
| Ring to Ring Center | 9 3/16 in |
| Stud Size | #10-32 NF-2A x 5/8 in |
| Full Load Amps | 7.1 A |
| Nameplate RPM | 1,725 |
| Phase | Single |
| Mounting Stud Pattern | 4-1/8 in x 4-1/8 in |
| Motor Bearings | Ball |
| Motor Mounting Type | Cradle Base |
| Capacitor Required | No |
| Motor Service Factor | 1 |
| Motor Application | HVAC/R |
| Application | Blowers, Fans and Air Circulators |
| Shaft Length | 1 7/8 in |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Position | Horizontal |
| Voltage | 115V AC |
| Motor Sub Application | Direct Drive Fan/Blower |
| Max. Ambient Temp. | 40 Degrees C |
| Frame | 56 |
| HP | 1/2 |
| Shaft Dia. | 5/8 in |
| RPM Range | 1,701-1,800 |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency | 0.7 % |
| Overall Length | 11 1/2 in |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Weight | 25.8 lb |
| Duty Cycle | Continuous |
| Mounting | Cradle Base |
| Number of Speeds | 1 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

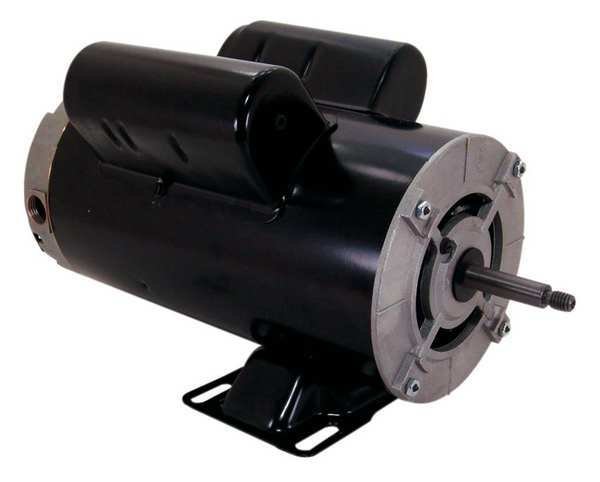

Motor, Split Ph, 1/2 HP, 1725,115V, 56, TEAO, CENTURY, Mfr# P56S17TRS40002A2A
$324,99
-$2.96 / ea
with subscription
Free shipping will be applied on orders over $50
Direct Drive Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.1 A, 56 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal
9999 in stock
Must order in multiples of 1
Subtotal:
$324.99
