| Property | Value |
|---|---|
| Motor Enclosure Design | Open Dripproof |
| Motor Sub Application | Aeration Fan |
| Motor Shaft Rotation | CW/CCW |
| Motor Bearings | Ball |
| Full Load Amps | 6.8/3.8 A |
| Ins. Class | B |
| Hz | 60 Hz |
| Phase | Single |
| RPM Range | 1,701-1,800 |
| Capacitor Required | No |
| HP | 1/2, 1/7 |
| Standards | CSA Certified, UL Recognized |
| Voltage | 115V AC |
| Body Dia. | 6 1/2 in |
| Max. Ambient Temp. | 40 Degrees C |
| Item | C-Frame Motor |
| Motor Thermal Protection | Auto |
| Motor Shaft Design | Keyed |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Duty | Continuous |
| Application | C Face Vent, Designed for Use On Commercial and Industrial Ventilation Systems |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/4 in |
| Motor Service Factor | 1.25 |
| Motor Mounting Type | Face |
| Motor Design | Split-Phase |
| No. of Speeds | 2 |
| Length Less Shaft | 9 3/8 in |
| Motor Mounting Position | All Angle |
| Frame | 56CZ |
| Motor Application | HVAC/R |
| Nameplate RPM | 1,725 |
| Motor Frame Material | Steel |
| Number of Shafts | 1 |
| Weight | 28 lb |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Stud Quantity | 4 |
| Mounting Holes | (4) 3/8 in-16 |
| Duty Cycle | Continuous |
| Overall Length | 11 5/8 in |
| Mounting | Face |
| Number of Speeds | 2 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

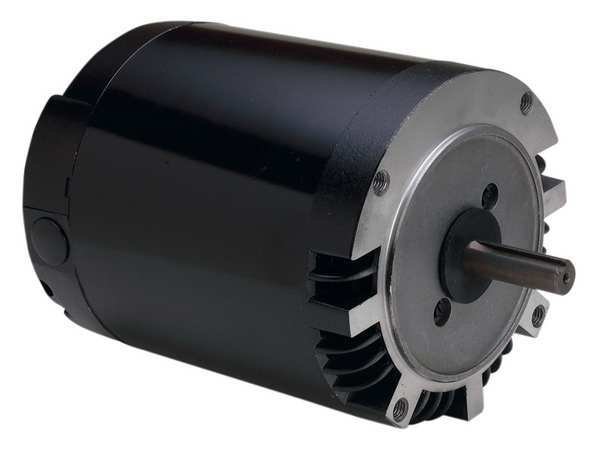

Motor, Split Ph, 1/2 HP, 1725,115V, 56CZ, ODP, Century, Mfr#: F263
$287.99
Free shipping will be applied on orders over $50
C-Frame Motor, Single Phase, Motor Design Split-Phase, 1/2, 1/7 HP, Nameplate RPM 1,725, No. of Speeds 2, Voltage 115V AC, Full Load Amps 6.8/3.8 A, 56CZ Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1.25, Ins. Class B, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Dripproof, Motor Mounting Type Face, Motor Mounting Position All Angle, Number of Shafts 1
Out of stock
