| Property | Value |
|---|---|
| Motor Shaft Rotation | CW/CCW |
| RPM Range | 1,001-1,100 |
| Body Dia. | 5 5/8 in |
| Motor Mounting Position | Horizontal |
| Resilient Ring Dia. | 2 1/4 in |
| Shaft Length | 6 1/2 in |
| Motor Mounting Type | Ring |
| Motor Bearings | Ball |
| Shaft Dia. | 1/2 in |
| Motor Sub Application | Direct Drive Fan/Blower |
| Phase | Single |
| Duty | Continuous |
| Includes | Belly Band, Resilient Mounting Ring |
| Length Less Shaft | 5 5/8 in |
| Frame | 48Y |
| Application | Blowers, Fans and Air Circulators |
| Max. Ambient Temp. | 50 Degrees C |
| Hz | 60 Hz |
| Stud Size | #8-32 |
| No. of Speeds | 3 |
| Motor Shaft Design | Flat |
| Standards | CSA Certified, UL Recognized |
| Ring to Ring Center | 5 3/16 in |
| Motor Application | HVAC/R |
| Mounting Stud Location | Shaft End |
| Nameplate RPM | 1,075 |
| Ins. Class | A |
| Motor Enclosure Design | Open Air-Over |
| Motor Design | Permanent Split Capacitor |
| Item | Direct Drive Blower Motor |
| Voltage | 115V AC |
| Full Load Amps | 5.09 A |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| HP | 1/3 |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Capacitor Required | 2MDV6 |
| Overall Length | 11 9/16 in |
| Stud Quantity | 4 |
| Number of Shafts | 1 |
| Weight | 14 lb |
| Usable @ 200V | No |
| Mounting Holes | (4) #8-32 |
| Usable @ 208V | No |
| Lead Length | 26 in |
| Motor Frame Material | Steel |
| Mounting | Stud |
| Number of Speeds | 3 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

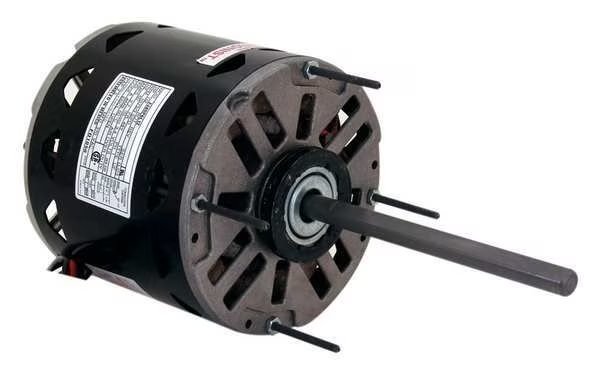

Motor, PSC, 1/3 HP, 1075 RPM, 115V, 48Y, OAO, Century, Mfr#: FDL1036
$175.99
Free shipping will be applied on orders over $50
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 3, Voltage 115V AC, Full Load Amps 5.09 A, 48Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CW/CCW, Max. Ambient Temp. 50 Degrees C, Lead Length 26 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal, Number of Shafts 1
9999 in stock
