| Property | Value |
|---|---|
| Nameplate RPM | 1,050 |
| HP | 1/5 |
| Bolt Circle Dia. | 4 7/16 in |
| Phase | Single |
| Capacitor Required | No |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Mounting Type | Ring |
| Includes | Belly Band, Resilient Mounting Ring |
| Motor Design | Shaded Pole |
| Length Less Shaft | 4 15/16 in |
| Item | Direct Drive Blower Motor |
| Motor Service Factor | 1 |
| Standards | CSA Certified, UL Recognized |
| Stud Size | #10-32 |
| Full Load Amps | 7.01 A |
| Motor Shaft Design | Flat |
| Motor Thermal Protection | Auto |
| RPM Range | 1,001-1,100 |
| Motor Enclosure Design | Open Air-Over |
| Motor Bearings | Sleeve |
| Motor Shaft Rotation | CCWLE |
| Voltage | 115V AC |
| Motor Application | HVAC/R |
| Application | Blowers, Fans and Air Circulators |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Mounting Position | Horizontal |
| No. of Speeds | 4 |
| Body Dia. | 5 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 11/16 in |
| Frame | 42Y |
| Ring to Ring Center | 4 9/16 in |
| Mounting Stud Pattern | 3-1/8 |
| Ins. Class | A |
| Voltage Compatibility | 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC |
| Duty | Continuous |
| Resilient Ring Dia. | 2 1/2 in |
| Hz | 60 Hz |
| Lead Length | 35 in |
| Number of Shafts | 1 |
| Usable @ 208V | No |
| Motor Frame Material | Steel |
| Usable @ 200V | No |
| Weight | 11 lb |
| Mounting Holes | 4 |
| Stud Quantity | 4 |
| Overall Length | 6 1/2 in |
| Mounting | Ring |
| Number of Speeds | 4 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

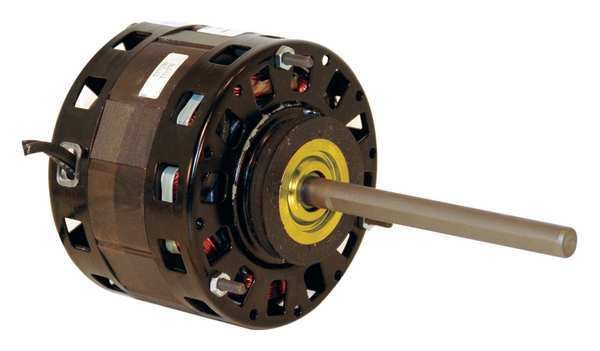

Motor, Sh Pole, 1/5 HP, 1050,115V, 42Y, OAO, Century, Mfr#: BL6416
$178.99
Free shipping will be applied on orders over $50
Direct Drive Blower Motor, Single Phase, Motor Design Shaded Pole, 1/5 HP, Nameplate RPM 1,050, No. of Speeds 4, Voltage 115V AC, Full Load Amps 7.01 A, 42Y Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class A, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 35 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position Horizontal, Number of Shafts 1
9999 in stock
