| Bolt Circle Dia. | 5 1/8 in |
| Capacitor Required | 2MDV4 |
| Motor Mounting Type | Stud |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Replacement For | B13400-251 |
| Phase | Single |
| Motor Design | Permanent Split Capacitor |
| Hz | 60 |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Overall Length | 8 1/16 in |
| Manufacturers Warranty Length | 1 yr |
| Motor Bearings | Sleeve |
| Full Load Amps | 1.0 A |
| Stud Size | #8-32 |
| Mounting Stud Pattern | 3 5/8 in x 3 5/8 in |
| Length Less Shaft | 4 1/4 in |
| No. of Speeds | 1 |
| HP | 1/6 |
| Motor Thermal Protection | Auto |
| Motor Sub Application | Direct Drive Fan/Blower |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 1/2 in |
| Duty | Continuous |
| Standards | CSA, UL |
| RPM Range | 1,001-1,100 |
| Nameplate RPM | 1,075 |
| Item | Direct Drive Blower Motor |
| Motor Shaft Rotation | CCWLE |
| Number of Shafts | 1 |
| Body Dia. | 5.7 in |
| Motor Application | OEM Replacement |
| Motor Shaft Design | Flat |
| OEM Replacement Brand | Goodman |
| Shaft Length | 3 13/16 in |
| Application | Goodman, Janitrol |
| Voltage Compatibility | 115/208-230V AC, 208-230V AC, 208-240V AC |
| Voltage | 208-230V AC |
| Frame | 48Y |
| Weight | 9 lb |
| Motor Mounting Position | Vertical Shaft Down |
| Mounting Stud Length | 1/4 in |
| Usable @ 208V | Yes |
| Motor Frame Material | Steel |
| Usable @ 200V | No |
| Includes | (4) Studs |
| Rotation | CCWLE |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

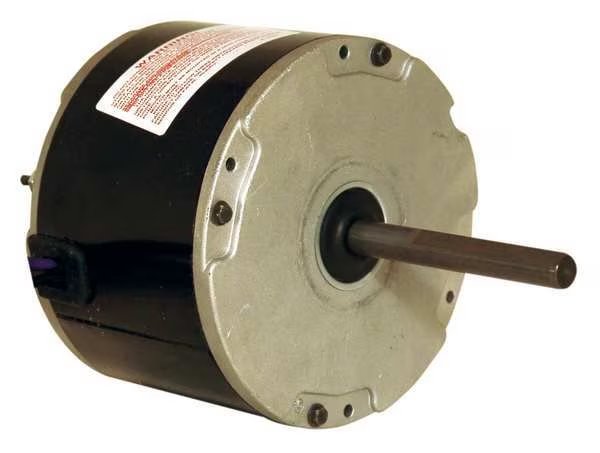

Motor, PSC, 1/6 HP, 1075,208-230V, 48Y, TEAO, CENTURY, Mfr# OGD1016
-3% / ea
with subscription
Free shipping will be applied on orders over $50
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/6 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.0 A, 48Y Frame, OEM Replacement Brand Goodman, Replacement For B13400-251, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
9999 in stock
Must order in multiples of 1
Subtotal:
$141.99
