| Property | Value |
|---|---|
| Shaft Length | 4 1/2 in |
| RPM Range | 1,501-1,600 |
| Resilient Ring Dia. | 2 1/4 in |
| Motor Service Factor | 1 |
| Shaft Dia. | 1/2 in |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Application | HVAC/R |
| Frame | 48Y |
| Length Less Shaft | 5 1/8 in |
| Duty | Continuous |
| Motor Design | Permanent Split Capacitor |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 40 Degrees C |
| Nameplate RPM | 1,550 |
| Application | Room Air Conditioners, Unit Heaters, Condensers, Furnace Blowers, A Wide Range of Other Shaft Mounted Fan and Blower Equipment |
| Motor Thermal Protection | Auto |
| Item | Direct Drive Blower Motor |
| Includes | Resilient Mounting Ring |
| Voltage | 115/208-230V AC |
| Ring to Ring Center | 4 11/16 in |
| Motor Enclosure Design | Open Air-Over |
| Standards | CSA Certified, UL Recognized |
| Phase | Single |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CCWLE |
| Hz | 60 Hz |
| Motor Mounting Type | Ring |
| Ins. Class | B |
| No. of Speeds | 1 |
| Capacitor Required | Included |
| Body Dia. | 5 5/8 in |
| Motor Mounting Position | All Angle |
| Full Load Amps | 2.7/1.2/1.4 A |
| HP | 1/8 |
| Motor Sub Application | Direct Drive Fan/Blower |
| Overall Length | 9 1/8 in |
| Number of Shafts | 1 |
| Weight | 11 lb |
| Usable @ 208V | Yes |
| Stud Quantity | 4 |
| Usable @ 200V | No |
| Lead Length | 12 in |
| Mounting Holes | 4 |
| Motor Frame Material | Steel |
| Number of Speeds | 1 |
| Mounting | Ring |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

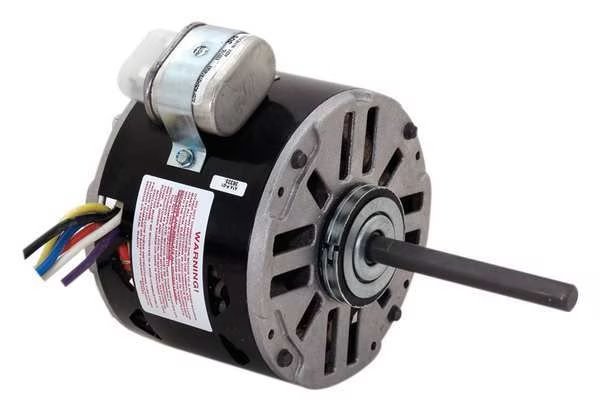

Mtr, PSC, 1/8 HP, 1550,115/208-230V, 48Y, OAO, Century, Mfr#: 9704
$198.99
Free shipping will be applied on orders over $50
Direct Drive Blower Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 2.7/1.2/1.4 A, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 40 Degrees C, Lead Length 12 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Ring, Motor Mounting Position All Angle
9999 in stock
