| Property | Value |
|---|---|
| Item | Pool Pump Motor |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 2 |
| RPM Range | 3,001-3,600 |
| Motor Service Factor | 1.3 |
| Nameplate RPM | 3,450 |
| Frame | 48Y |
| Motor Shaft Rotation | CCWSE |
| Voltage | 208-230/460V AC |
| Phase | Three |
| Full Load Amps | 8.5/4.25 |
| Motor Mounting Type | Face |
| Motor Application | Pump |
| Motor Efficiency Group | Standard Efficient |
| Hz | 60 Hz |
| Shaft Length | 1 in |
| Shaft Material | Stainless Steel |
| Ins. Class | B |
| Motor Sub Application | Pool and Spa Pump |
| Motor Bearings | Ball |
| Ambient Temperature | 50 Degrees C |
| Shaft | Threaded 1/2-20 UNF-2A RH |
| Motor Flange Material | Aluminum |
| Finish | Black |
| Shaft Dia. | 5/8 in |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Standards | CSA |
| Motor Thermal Protection | None |
| Max. Ambient Temp. | 50 Degrees C |
| Duty Cycle | Continuous |
| Weight | 32 lb |
| Motor Frame Material | Steel |
| Motor Shaft Design | Threaded |
| Usable @ 208V | Yes |
| Motor Mounting Position | Horizontal |
| Body Dia. | 5.7 in |
| Length Less Shaft | 12 7/16 in |
| No. of Speeds | 1 |
| Usable @ 200V | No |
| Overall Length | 13 5/16 in |
| Height | 5 5/8 in |
| Application | Pool/Spa Motor |
| Shaft Dia. (In.) | 5/8 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

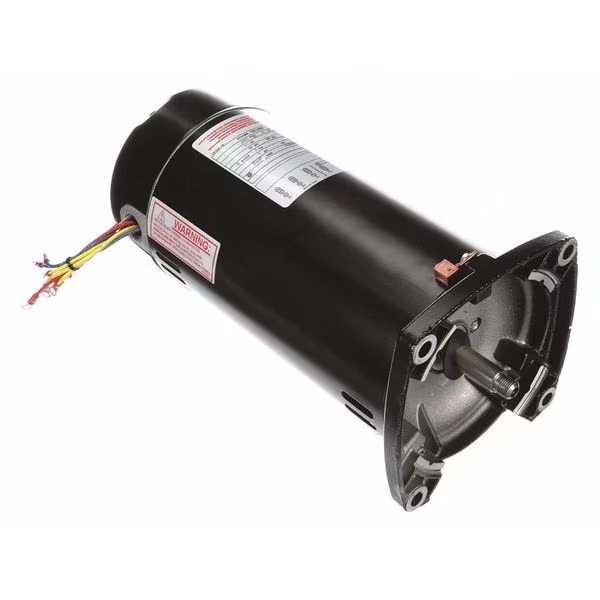

Pool Pump Motor, 3-Phase, 2 HP, 48Y Frame, 3,450 Nameplate RPM, Century, Mfr#: Q3202
$596.99
Free shipping will be applied on orders over $50
Pool Pump Motor, Body Dia. 5.7 in, Duty Cycle Continuous, Finish Black, Frame 48Y, Hz 60 Hz, Full Load Amps 8.5/4.25, Height 5 5/8 in, HP 2, Ins. Class B, Length Less Shaft 12 7/16 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
9999 in stock
Subtotal:
$596.99
