| Property | Value |
|---|---|
| Item | Pool Pump Motor |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 3 |
| Motor Service Factor | 1.15 |
| RPM Range | 3,001-3,600 |
| Nameplate RPM | 3,450 |
| Frame | 56Y |
| Motor Shaft Rotation | CCWSE |
| Phase | Single |
| Voltage | 208-230V AC |
| Motor Mounting Type | Face |
| Full Load Amps | 15.0-13.3 |
| Motor Application | Pump |
| Max. Ambient Temp. | 50 Degrees C |
| Design | Two Compartment |
| Hz | 60 Hz |
| Standards | CSA, UL |
| Motor Efficiency Group | Standard Efficient |
| Motor Thermal Protection | Auto |
| Motor Sub Application | Pool and Spa Pump |
| Ins. Class | B |
| Voltage Compatibility | 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC |
| Shaft Material | Stainless Steel |
| Shaft Dia. | 5/8 in |
| Motor Bearings | Ball |
| Shaft Length | 1 in |
| Duty Cycle | Continuous |
| Body Dia. | 6.6 in |
| No. of Speeds | 1 |
| Height | 6 9/16 in |
| Weight | 43 lb |
| Usable @ 200V | No |
| Motor Shaft Design | Threaded |
| Motor Mounting Position | Horizontal |
| Motor Frame Material | Steel |
| Usable @ 208V | Yes |
| Length Less Shaft | 13 1/2 in |
| Overall Length | 14 7/16 in |
| Warranty | 2ACD2 |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

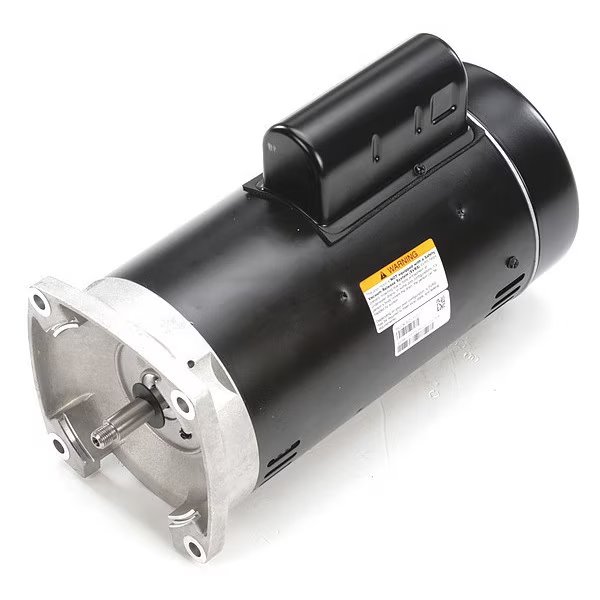

Pool Pump Motor, Capacitor-Start/Run, 3 HP, 56Y Frame, 3,450 Nameplate RPM, Century, Mfr#: SQ1302V1
$601.99
Free shipping will be applied on orders over $50
Pool Pump Motor, Body Dia. 6.6 in, Duty Cycle Continuous, Frame 56Y, Hz 60 Hz, Full Load Amps 15.0-13.3, Height 6 9/16 in, HP 3, Ins. Class B, Length Less Shaft 13 1/2 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
9999 in stock
