| Property | Value |
|---|---|
| Item | Pool Pump Motor |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4 |
| RPM Range | 3,001-3,600 |
| Motor Service Factor | 1.85 |
| Nameplate RPM | 3,450 |
| Frame | 56Y |
| Motor Shaft Rotation | CCWSE |
| Voltage | 115/208-230V AC |
| Phase | Single |
| Full Load Amps | 11.6/7.0-5.8 |
| Motor Mounting Type | Face |
| Motor Efficiency Group | Energy Efficient |
| Shaft Material | Stainless Steel |
| Shaft Dia. | 5/8 in |
| Motor Sub Application | Pool and Spa Pump |
| Hz | 60 Hz |
| Shaft Length | 1 in |
| Ambient Temperature | 60 Degrees C |
| Voltage Compatibility | 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC |
| Motor Flange Material | Aluminum |
| Motor Bearings | Ball |
| Shaft | Threaded 1/2-20 UNF-2A RH |
| Standards | CSA, UL |
| Motor Thermal Protection | Auto |
| Motor Application | Pump |
| Ins. Class | F |
| Finish | Black |
| Max. Ambient Temp. | 60 Degrees C |
| Height | 6 1/2 in |
| Usable @ 200V | No |
| Bolt Circle Dia. | 5 11/16 in |
| Length Less Shaft | 12 1/4 in |
| Usable @ 208V | Yes |
| Motor Frame Material | Steel |
| No. of Speeds | 1 |
| Duty Cycle | Continuous |
| Weight | 31 lb |
| Overall Length | 13 1/8 in |
| Replacement For | Mfr. No. SP3207Z1BE |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Conduit Box Position | F3 |
| Application | Pool/Spa Motor |
| Shaft Dia. (In.) | 5/8 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

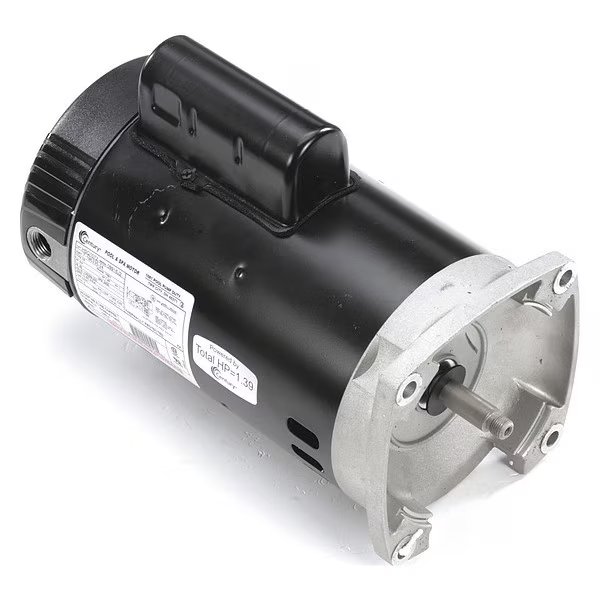

Pool Pump Motor, Capacitor-Start/Run, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM, Century, Mfr#: HSQ1072
$426.99
Free shipping will be applied on orders over $50
Pool Pump Motor, Bolt Circle Dia. 5 11/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60 Hz, Full Load Amps 11.6/7.0-5.8, Height 6 1/2 in, HP 3/4, Ins. Class F, Length Less Shaft 12 1/4 in, Max. Ambient Temp. 60 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
9999 in stock
Subtotal:
$426.99
