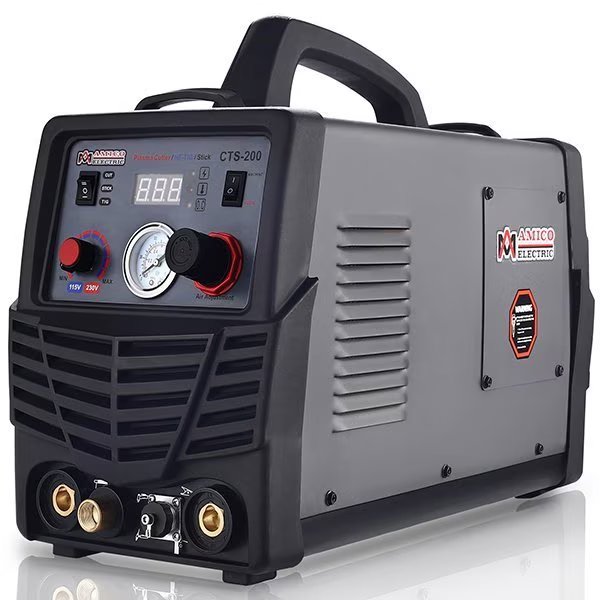

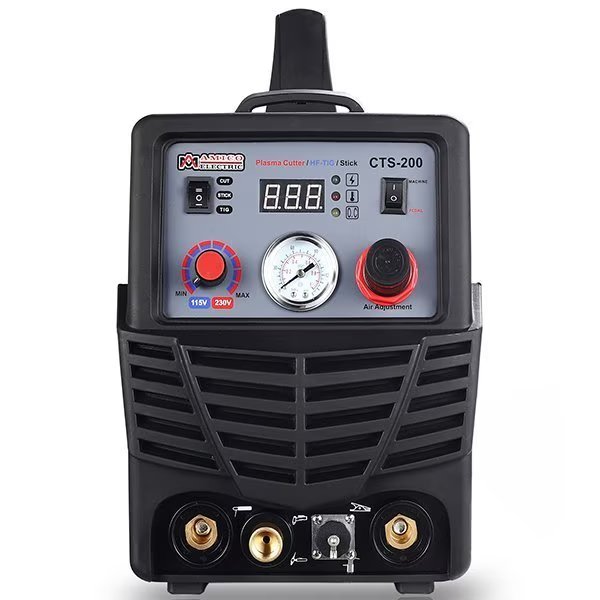

Multifunction 50A Plasma Cutter, 200A HF-TIG & Stick Arc Welder, Compatible Foot Pedal: FP515-1K., Amico Electric, Mfr#: CTS-200B

CTS-200 is a new type of multifunctional machine with stylish and generous appearance and superb production technology. Using the most advanced IGBT inverter technology, the arc stability is good, the cutting effect is excellent, and the welding effect is perfect. Can cut and weld almost all metals: stainless steel, carbon steel, low carbon steel, steel, alloy, iron, copper, cast iron. Using the pedal to control the TIG current, you can make exquisite works of art. Specifications: Type: Plasma Cutter, HF-TIG, Stick/Arc 3-in-1 Combo Welding. Supply Power: 110/220V, 50/60Hz, 1-Phase. Welding current Range: Plasma Cutter: 220V/50A & 115V/35A. HF-TIG: 220V/200A & 110V/140A. STICK Arc: 220V/200A & 115V/140A. Welding output,104F: Plasma Cutter: 50A/100V, TIG Torch: 200A/18V, STICK ARC: 200A/28V. Rated Input Current: Plasma Cutter: 27.1A/220V & 35.7A/110V, TIG Torch: 19.6A/220V & 23.7A/110V, STICK Arc: 30.5A/220V & 39.1A/110V. Duty Cycle: Plasma Cutter: 60% at 50A & 100% at 32A, TIG Torch: 60% at 200A & 100% at 126A, STICK Arc: 60% at 200A & 100% at 126A. Nominal DC Open Circuit Voltage: 73V. Efficiency: 85% & Power Factor: 0.93. Output Terminal Type: Direct Wire. Cooling Method: Fan Air Cooled. Plasma Air Supply: Clean Dry Oil-Free Air. Plasma Air Pressure Range: 30-75 psi. Recommended Air Inlet Flow: 4.5scfm at 75 psi. Maximum Severance Cutting Thickness: 1.0 in. Movement Speed: 12.5 in./min. Includes: 13-Feet Plasma Cutter Torch Gun Assembly, 13-Feet High Frequency TIG Torch Assembly, 300-Amp Electrode Holder and 10-Feet Cable, 300-Amp Work Clamp and 10-Feet Cable, 8-Feet Argon Hose and 5/8 inch UNF-18RH, 220V (N6-50R) to 110V (10-30P) Power Adapter, 2 Pieces Tungsten Needles 1/16 in. 2 Pieces Tungsten Needles 3/32 in. 2 pieces Electrode 1/8 in. 2 pieces Electrode 5/32 in. Owner’s Manual.
