| Property | Value |
|---|---|
| Item | Microguide Assembly |
| Type | Dual Carriage |
| Base Width | 12 mm |
| Rail Height | 7.5 mm |
| Rail Length | 10.63 in |
| Carriage Height | 10 mm |
| Carriage Width | 27 mm |
| Carriage Length | 35 mm |
| Rail Material | Stainless Steel |
| Carriage Material | Stainless Steel |

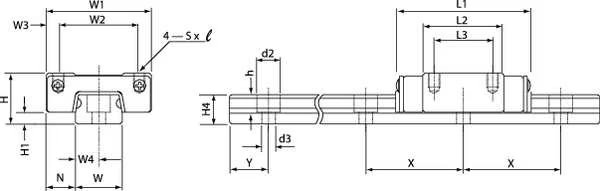

| Dimension H1 | 3 mm |
| Seals | Yes |
| Dimension N | 7.5 mm |
| Agency Compliance | None |
| Static Load Capacity (N) | 2,360 |
| Dimension W3 | 3.5 mm |
| Dimension W1 | 27 mm |
| Dimension H4 | 7.5 mm |
| Dimension L3 | 15 mm |
| Dimension L2 | 20.8 mm |
| Dimension S X l (Carriage Hole Size) | M3x3.6 |
| Cnt Mtg Hole to Qualify Edge (In/mm) | 6 mm |
| Carriage Hole Size (In.) | M3 x 3.6 |
| Dimension L1 | 35 mm |
| Dimension D2 | 6 mm |
| Dynamic Load Capacity (N) | 2,780 |
| Dimension Y | 10 mm |
| Hole Size | 3.50mm |
| Mounting Hole to End (In/mm) | 10 mm |
| Number of Rail Holes | 10 |
| Dimension D3 | 3.5 mm |
| Max. Speed (m/Sec) | 3 |
| Dimension W4 | 6 mm |
| Dimension W2 | 20 mm |
| Overall Height (mm) | 13 |
| Mounting Hole Center to Center (In/mm) | 25 mm |
| Running Clearance (In/mm) | 3 mm |
| Dimension W | 12 mm |
| Dimension X | 25 mm |
| Carriage Type | Standard |
| Rail Finish | Stainless Steel |
| Dimension h | 4.5 mm |
| Includes Seals | Seals Included |
| Mounting Hole Center to Center | 25 mm |
| Carriage Mounting Hole Size | M3 x 3.5 |
| Dynamic Load Capacity | 2.79 kN |
| Overall Height | 13 mm |
| Running Clearance | 3 mm |
| Mounting Hole to End | 10 mm |
| Rail Width | 12 mm |
| Number of Carriages | 2 |
| Rail Mounting Hole Size | 3.5 mm |
| Static Load Capacity | 4.22 kN |
| Maximum Travel Velocity | 3 mps |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
Microguide Assy, Dual Carriage, 270 mm L, Thomson, Mfr#: 2TSR12ZMUU+270
$429.99
Free shipping will be applied on orders over $50
Microguide Assembly, Rail Width 12 mm, Number of Carriages 2, Overall Height 13 mm, Rail Length 10.63 in, Rail Material Stainless Steel, Carriage Material Stainless Steel, Carriage Length 35 mm, Carriage Width 27 mm, Dynamic Load Capacity 2.79 kN, Carriage Type Standard, Rail Finish Stainless Steel, Running Clearance 3 mm, Rail Height 7.5 mm, Rail Mounting Hole Size 3.5 mm, Carriage Height 10 mm, Carriage Mounting Hole Size M3 x 3.5, Number of Rail Holes 10, Includes Seals Seals Included
9999 in stock
