Protection Method
Non-Fusible
Neutral Assembly Included
Yes
Standards
EU RoHS, UL listed file E2875
Includes
Dual Cover Interlock
Number of Mounting Holes
5
Maximum Enclosure Depth
7.04 in
Mounting Style
Surface Mount
Fuse Kit (Class R)
Mfr. No. RFK06H
For Fuse Class
Not Applicable
Features
Quick Make/Break Operating Mechanism, Viewing Window
Horsepower @ 480V AC
50 hp
Compatible with Manufacturer Model Number
RFK06H
Horsepower @ 600V AC
60 hp
Includes Interlocked Receptacle
Yes
Horsepower @ 240V AC
Not Rated
Compatible with Manufacturer Model Number [NEW]
RFK06H
Compatible Manufacturer Part Number
RFK06H
Compatible Manufacturer Model Number
RFK06H
For Use with Mfr. Model Number
RFK06H
For Use With Mfr. Model Number
RFK06H

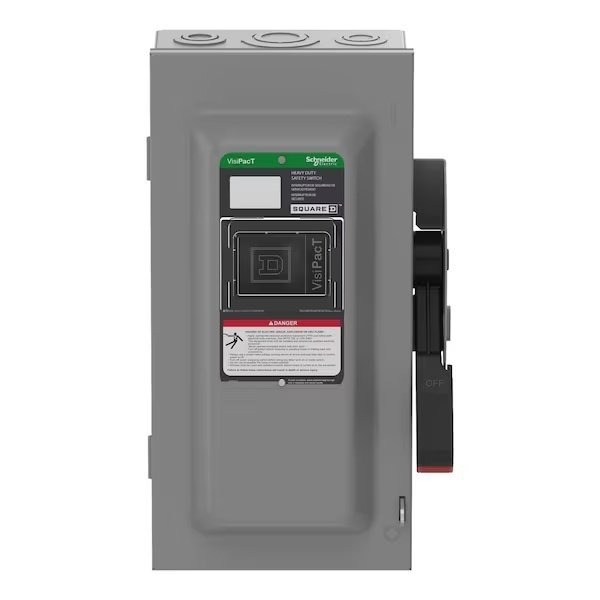

Product Or Component Type
Single Throw Safety Switch
Device Application
heavy application
[Ue] Rated Operational Voltage
600 V AC/DC
Nema Degree Of Protection
NEMA 1 steel
Product Certifications
UL listed file E2875
Device Composition
neutral (factory installed)
Wiring Configuration
4-wire (3PH + N)
Tightening Torque
50-50 lbf.in (AWG 3) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Disconnector Device Type
non-fusible disconnect
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Awg Gauge
AWG 14...AWG 3 copper || AWG 12...AWG 3 aluminium
Electrical Connection
lugs
Country of Origin (subject to change)
United States
