| Item | Safety Switch |
| Protection Method | Non-Fusible |
| Voltage | 600V AC/DC |
| Number of Poles | 3 |
| Phase | Three |
| Contact Form | 3PST |
| Duty | Heavy Duty |
| Height | 20 3/4 in |
| Neutral Assembly Included | Yes |
| Standards | EU RoHS, UL listed file E2875 |
| Number of Wires | 4 |
| Width | 9 1/4 in |
| Includes | Dual Cover Interlock |
| Depth | 7 1/4 in |
| Environment | Indoor/Outdoor |
| Mounting Style | Surface Mount |
| For Fuse Class | Not Applicable |
| Fuse Kit (Class R) | Mfr. No. RFK10 |
| Enclosure Type | Enclosed |
| Number of Mounting Holes | 6 |
| Resistance Properties | Corrosion-Resistant |
| Maximum Enclosure Depth | 7.25 in |
| Current Rating | 100 A |
| Housing Material | 316 Stainless Steel |
| NEMA Enclosure Rating | 4X |
| Product Certifications | UL listed file E2875 |
| Disconnector Device Type | non-fusible disconnect |
| Product Or Component Type | Single Throw Safety Switch |
| Wiring Configuration | 4-wire (3PH + N) |
| Device Composition | neutral (factory installed) |
| Tightening Torque | 50-50 lbf.in (AWG 1...AWG 3/0) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm? (AWG 8) || 35-35 lbf.in 2.06-5.261 mm? (AWG 14...AWG 10) |
| Awg Gauge | AWG 12...AWG 1/0 aluminium || AWG 14...AWG 1/0 copper |
| Condition Of Use | suitable service entrancefor USA || suitable service entrancefor Mexico |
| Line Rated Current | 100 A |
| Nema Degree Of Protection | NEMA 4X Stainless Steel |
| Series Name | heavy duty |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Electrical Connection | lugs |
| Device Application | heavy application |
| Device Mounting | surface |
| Compatible with Manufacturer Model Number | RFK10 |
| Features | Quick Make/Break Operating Mechanism, Viewing Window |
| Includes Interlocked Receptacle | Yes |
| Horsepower @ 600V AC | 150 hp |
| Number of Locks | 2 |
| Horsepower @ 480V AC | 125 hp |
| Horsepower @ 240V AC | Not Rated |
| Handle Color | Black/Red |
| Compatible with Manufacturer Model Number [NEW] | RFK10 |
| Compatible Manufacturer Part Number | RFK10 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

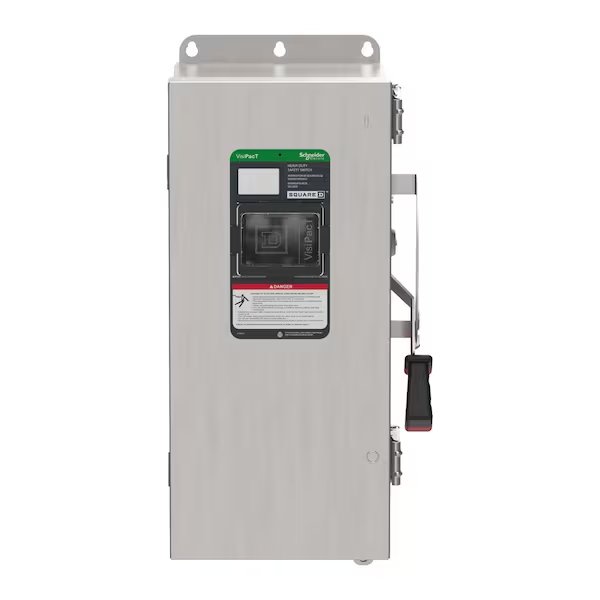

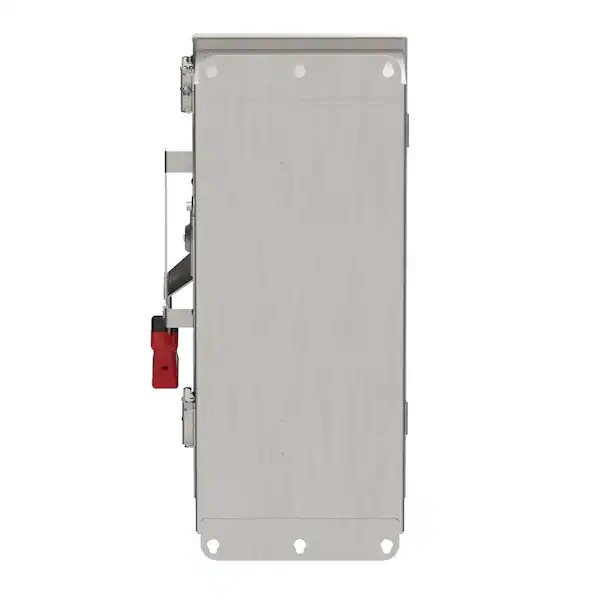

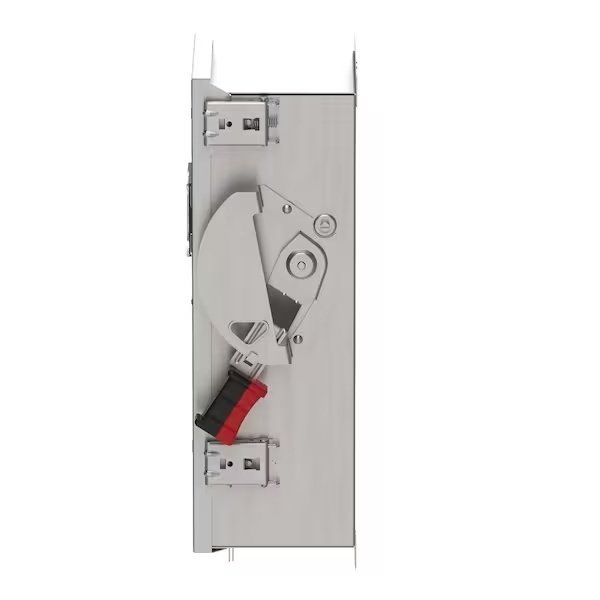

Non-Fusible Safety switch, 600V AC/DC, 3 pole, SCHNEIDER ELECTRIC, Mfr# VHU363NSSGL
$3835,99
Free shipping will be applied on orders over $50
Safety Switch, Compatible with Manufacturer Model Number RFK10, Contact Form 3PST, Current Rating 100 A, Depth 7 1/4 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Not Applicable, Fuse Kit (Class R) Mfr. No. RFK10, Handle Color Black/Red, Height 20 3/4 in, Horsepower @ 240V AC Not Rated, Horsepower @ 480V AC 125 hp, Horsepower @ 600V AC 150 hp, Housing Material 316 Stainless Steel
0 in stock
Must order in multiples of 1
Subtotal:
$3835.99
