| Property | Value |
|---|---|
| Shaft Locking Type - Couplings | 1 Piece Clamp |
| Bore Dia. | 8 mm |
| Max. RPM | 4,500 RPM |
| Outside Dia. | 33.3 mm |
| Screw Size (mm) | M3 |
| With Keyway / Without Keyway | Without Keyway |
| Max. Axial Misalignment (In.) | +/-0.006 |
| Finish | Anodized Aluminum |

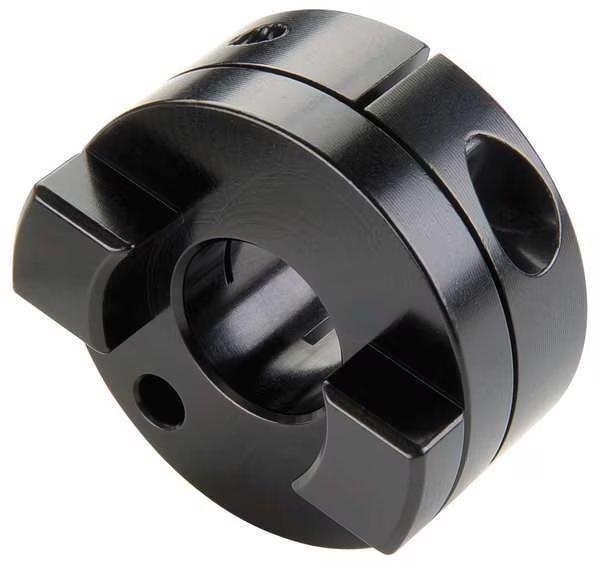

| Item | Motion Control Coupling Hub |
| Length through Bore (mm) | 15 mm |
| Screw Type | Cap Screw |
| Item - Oldham Coupling Hubs | Oldham Coupling Hub |
| Assembled Coupling Length | 47.6 mm |
| Max. Angular Misalignment | 0.5 Degrees |
| Overall Length (mm) | 47.6 mm |
| Max. Parallel Misalignment (In.) | 0.008 in |
| Max. Temp. Range (F) | 225 |
| Clearance Dia. (mm) | 33.3 mm |
| Material - Hubs | Aluminum |
| Length through Bore | 15 mm |
| Bore Tolerance | +0.03 mm / -0.00 mm |
| Axial Motion | 0.15 mm |
| Screw Material | Alloy Steel |
| Screw Seating Torque | 2.1 N-m |
| Shaft Tolerance | +0.000 mm / -0.013 mm |
| Standards | Conflict Minerals Compliant, ISO 9001:2015, REACH Compliant, RoHS3 Compliant |
| Features | Balanced Design |
| Angular Misalignment | 0.5 Degrees |
| Bore Diameter | 8 mm |
| Coupling Overall Length | 47.6 mm |
| For Misalignment Type | Angular, Axial, Parallel |
| Screw Material Finish | Black Oxide |
| Keyway Depth | Not Applicable |
| Hub Material | Aluminum |
| Hub Material Finish | Black Anodized |
| Shaft Locking Type | Clamp On |
| Zero Backlash | Yes |
| Coupling Size | MOCT33 |
| Bore Type | Round |
| Compatible Center Element Manufacturer Part Number | OD21/33-AT, OD21/33-NL, OD21/33-PEK |
| Over-Standard Parallel Misalignment | 3.33 mm |
| Keyway Width | Not Applicable |
| Full Bearing Support Required | Yes |
| Minimum Operating Temperature | -23 Degrees C |
| Maximum Speed | 4,500 RPM |
| Outside Diameter | 33.3 mm |
| Maximum Operating Temperature | 93 Degrees C |
| Parallel Misalignment | 0.2 mm |
| Mechanical Fuse Break | Yes |
| Hub Material Grade | 2024 |
| System of Measurement | Metric |
| Included Screws | Clamp Screw |
| Set Screw Location | Not Applicable |
| Screw Thread Size | M3 |
| Weight | 0.079 lb |
| Number of Locking Screws | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

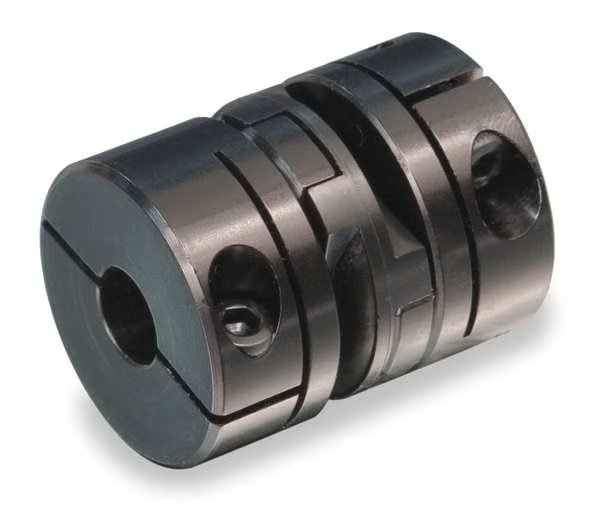

Coupling, Oldham Clamp, Bore 8 mm, Ruland, Mfr#: MOCT33-8-A
$28.99
Free shipping will be applied on orders over $50
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.15 mm, Coupling Size MOCT33, Outside Diameter 33.3 mm, Over-Standard Parallel Misalignment 3.33 mm, Parallel Misalignment 0.2 mm, Coupling Overall Length 47.6 mm, Hub Material Aluminum, Length through Bore 15 mm, System of Measurement Metric, Bore Diameter 8 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Clamp On, Keyway Depth Not Applicable, Keyway Width Not Applicable, Screw Seating Torque 2.1 N-m
9999 in stock
Subtotal:
$28.99
