| Item | Overload Module |
| Voltage | 110-240V AC/110-220V DC |
| Phase | Three |
| Thermal Setting Range (A) | 8.00 to 32.00 |
| For Use With | LUxS32 Power Bases, Mfr. Series LUxB32 |
| Trip Class | 10 |
| Standards | ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed |
| Number of Poles | 3 |
| Reset Type - Relay | Manual |
| Current Range | 8.00 to 32.0A |
| Sensing Method | Electronic |
| Features | Earth Fault Protection |
| Trip Class - Overload | 10 |
| Motor Power Kw | 15 kW 400 to 440 V AC 50/60 Hz || 15 kW 500 V AC 50/60 Hz || 18.5 kW 690 V AC 50/60 Hz |
| Width | 45 mm |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Thermal Overload Class | class 10 40-60 Hz -25-70°C IEC 60947-6-2 || class 10 40-60 Hz -25-70°C UL 508 |
| Tripping Threshold | 14.2 x Ir +/- 20 % |
| Depth | 60 mm |
| Height | 66 mm |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27 |
| Device Application | motor control || motor protection |
| Safe Separation Of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 || 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 |
| Ambient Air Temperature For Operation | -25-70°C |
| Protective Treatment | TH IEC 60068 |
| Load Type | 3-phase motor self-cooled |
| Ip Degree Of Protection | IP20 front panel and wired terminals IEC 60947-1 || IP20 other faces IEC 60947-1 || IP40 front panel outside connection zone IEC 60947-1 |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2 || 8 kV 4 on contact IEC 61000-4-2 |
| Fixing Mode | plug-in front face) |
| Heat Dissipation | 3-3 W control circuit with LUB32 || 3-3 W control circuit with LUB38 |
| Compatibility Code | LUCB |
| Resistance To Radiated Fields | 10 V/m 3 IEC 61000-4-3 |
| Product Compatibility | power base LUB32 || power base LUB38 || power base LUB320 || power base LUB380 || reversing contactor breaker LU2B32FU || reversing contactor breaker LU2B38FU |
| Product Certifications | CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine |
| Range | TeSys |
| Fire Resistance | 960°C parts supporting live components IEC 60695-2-12 || 650°C IEC 60695-2-12 |
| Non-Dissipating Shock Wave | 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2 |
| [Ue] Rated Operational Voltage | 690 V AC |
| Network Frequency | 40 to 60 Hz |
| Product Specific Application | basic protection and advanced functions, communication |
| Vibration Resistance | 2 gn 5-300 Hz power poles open IEC 60068-2-6 || 4 gn 5-300 Hz power poles closed IEC 60068-2-6 |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Function Available | manual reset || protection against overload and short-circuit || earth fault protection || protection against phase failure and phase imbalance |
| Operating Altitude | 6561.68 ft (2000 m) |
| Typical Current Consumption | 280 mA 110 to 240 V AC I maximum while closing with LUB32 || 280 mA 110 to 240 V AC I maximum while closing with LUB38 || 280 mA 110 to 220 V DC I maximum while closing with LUB32 || 280 mA 110 to 220 V DC I maximum while closing with LUB38 || 25 mA 110 to 240 V AC I rms sealed with LUB32 || 25 mA 110 to 240 V AC I rms sealed with LUB38 || 25 mA 110 to 220 V DC I rms sealed with LUB32 || 25 mA 110 to 220 V DC I rms sealed with LUB38 |
| Device Short Name | LUCB |
| Phase Failure Sensitivity | yes |
| Immunity To Voltage Dips | 70 % / 500 ms IEC 61000-4-11 |
| Operating Time | 35 ms opening with LUB32 control circuit || 35 ms opening with LUB38 control circuit || 50 ms closing with LUB32 control circuit || 50 ms closing with LUB38 control circuit |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Reset | manual reset |
| Product Name | TeSys Ultra |
| Thermal Protection Adjustment Range | 8-32 A |
| Immunity To Microbreaks | 3 ms |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1 |
| Product Or Component Type | advanced control unit |
| Ambient Air Temperature For Storage | -40-85°C |
| Utilisation Category | AC-44 || AC-43 || AC-41 |
| [Uc] Control Circuit Voltage | 110 to 240 V AC || 110 to 220 V DC |
| Control Circuit Voltage Limits | 88 to 264 V AC 110 to 240 V in operation || 88 to 242 V DC 110 to 220 V in operation || 55 V AC 110 to 240 V drop-out || 55 V DC 110 to 220 V drop-out |
| Terminal Connection Type | Wire Leads |
| Reset Type | Manual |
| Compatible with Manufacturer Model Number | LU2B32FU, LU2B38FU, LUB32, LUB320, LUB38, LUB380 |
| Maximum Operating Temperature | 158 Degrees F |
| Maximum Rated Motor Current Adjustment | 32 A |
| Minumum Rated Motor Current Adjustment | 8 A |
| Compatible with Series | TeSys Ultra |
| Maximum Voltage Rating | 690V AC |
| Minimum Operating Temperature | -13 Degrees F |
| Coil Voltage | 110-240V AC/DC |
| Compatible Manufacturer Part Number | LU2B32FU, LU2B38FU, LUB32, LUB320, LUB38, LUB380 |
| Country of Origin (subject to change) | France |
| Package Quantity | 1 |

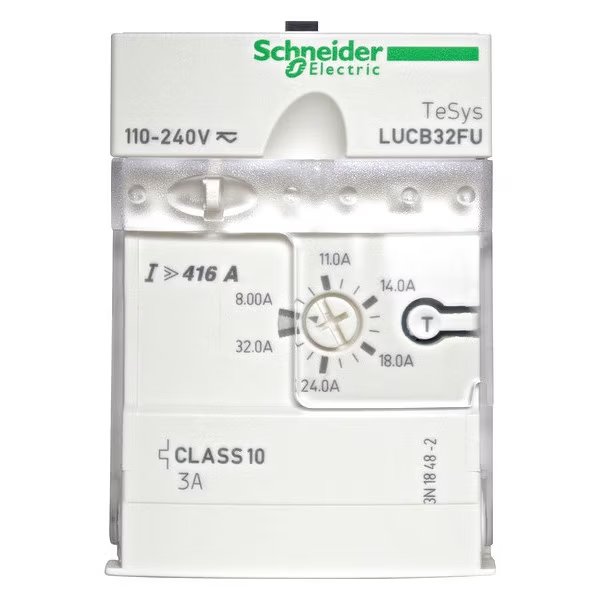

Overload Module, 8 to 32A, Class 10, 3P, SCHNEIDER ELECTRIC, Mfr# LUCB32FU
$164,99
Free shipping will be applied on orders over $50
Overload Module, Maximum Rated Motor Current Adjustment 32 A, Minumum Rated Motor Current Adjustment 8 A, Coil Voltage 110-240V AC/DC, Compatible with Series TeSys Ultra, Terminal Connection Type Wire Leads, Trip Class 10, Phase Three, Maximum Voltage Rating 690V AC, Reset Type Manual, Standards ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed, Compatible with Grainger Part Number 5AB64, 5AB68
9999 in stock
Must order in multiples of 1
Subtotal:
$164.99
