| Item | Percentage Cycle Timer |
| Number of Poles | 1 |
| HP @ 120V | 1/4 hp |
| Min. Time Setting | 0.06 sec |
| Max. Time Setting | 1 min |
| Amps | 10 A |
| Contact Form | SPNO |
| Output | 10A SPNO |
| NEMA Rating | 1 |
| Mounting | Surface |
| Width | 3 1/2 in |
| Depth | 4.11 in |
| Indicator LED | LED remains on steady during relay OFF time, LED blinks during relay ON time |
| Life | Mechanical: 10,000,000 operations, Full Load: 100,000 operations |
| Enclosure Style | Panel mount with supplied hardware |
| Repeat Accuracy (Constant Voltage and Temperature) | +0.1% or+0.04 seconds, whichever is greater |
| Function | Memory enabled |
| Control Voltage | 120V AC |
| Temperature | -28°to 65°C (-18°to 149°F) |
| Voltage Tolerance | AC Operation: +10/-15% of nominal at 50/60 Hz. |
| Configuration / Contact Rating | SPNO. 10A @ 240VAC / 7A @ 28V DC SPNO, 1/4HP@ 120V AC |
| Output Contacts | 10A @ 240VAC / 7A @ 28V DC SPNO, 1/4HP @ 120V AC |
| Timing Range | 1 minute |
| Reset Time | 300ms |
| Load (Burden) | Maximum of 2 VA for all voltages |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

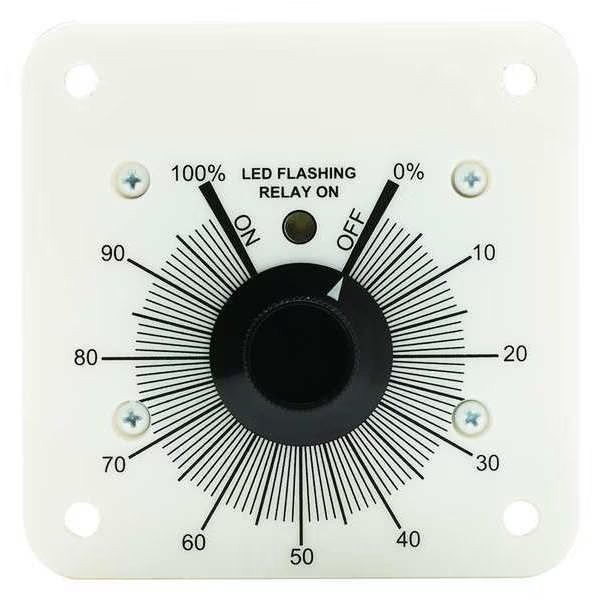

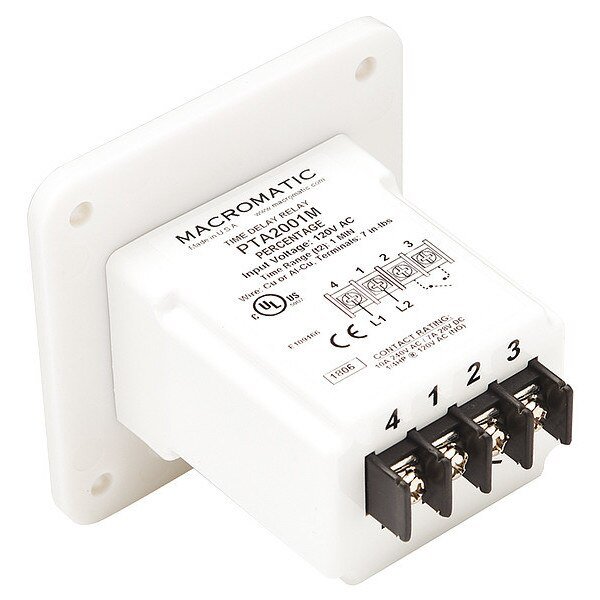

Percentage Cycle Timer, 10A, 3-1/2" W, MACROMATIC, Mfr# PTA2001M
$160,99
Free shipping will be applied on orders over $50
Percentage Cycle Timer, Number of Poles 1, HP @ 120V 1/4 hp, Min. Time Setting 0.06 sec, Max. Time Setting 1 min, Amps 10 A, Contact Form SPNO, NEMA Rating 1, Width 3 1/2 in, Depth 4.11 in, Mounting Surface
9999 in stock
Must order in multiples of 1
