| Item | Phase Monitor Relay |
| Item - Relay | Phase Monitor Relay |
| Input or Control Voltage | 190 to 500V AC |
| AC Contact Rating - Relay | 10A @ 277V |
| DC Contact Rating - Relay | 7A @ 30V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Mounting - Relay | Plug In |
| Contact Form - Relay | SPDT |
| Over Voltage | Fixed 110% of Line Voltage Setting |
| Pick Up Range | 190 to 500VAC |
| Under Voltage | 171 to 450V AC |
| Drop-Out Range | 75% to 95% |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | 0.1 sec |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec |
| Phase Unbalance | 2 to 10% |
| Phase Unbalance Time Delay | 0.3 to 30.0 sec |
| Restart | Auto, Manual |
| Restart Time Delay | 1 to 300 sec |
| Phase | 3 |
| Contact Amp Rating (Resistive) | 10 |
| Socket | 5X852 |
| Input or Control Voltage Range | 190 to 500VAC |
| Trip Delay | Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec. |
| Pins | 8 |
| Input Voltage | 190 to 500V AC |
| Contact Form | SPDT |
| Number of Contacts | 1 |
| Voltage Unbalance | 2 to 10 |
| Body Width - Relay | 1.7 in |
| Overall Height - Relay | 3.0 in |
| Power Rating | 3 |
| Base Type | Octal |
| Body Height - Relay | 2.9 in |
| Body Depth - Relay | 2.4 in |
| Standards | CE Certified, cULus Listed, cURus |
| Maximum Switching Voltage | 550V |
| Frequency | 50/60 Hz |
| Electrical Operating Durability | 100,000 |
| Power Consumption | 40 VA |
| Overvoltage | Fixed 110% of Line Voltage Setting |
| Overall Depth | 2.4 in |
| Socket Code | A |
| Electrical Connection Type | Pin |
| Contact Rating (AC) | 10 A @ 277V |
| Mechanical Operating Durability | 10,000,000 |
| Body Depth | 2.9 in |
| Relay Mounting Style | Socket |
| Body Height | 2.4 in |
| Monitored Parameters | Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage |
| Minimum Operating Temperature | -18.4 Degrees F |
| Maximum Operating Temperature | 149 Degrees F |
| Body Width | 1.7 in |
| Maximum Switching Capacity | 40 VA |
| Base Shape | Octal |
| Mounting Style | Plug-In |
| Socket Code Configurator | Socket / Octal / 8 |
| Number of Pins | 8 |
| Contact Rating (DC) | 7 A @ 30V |
| Undervoltage | 460 to 600V AC |
| Current Rating | 10 A |
| For Use With | Sensors |
| Standard Modifications | Adjustable Trip Points & Time Delays, |
| Enclosure Style | Plug-in, Plug-in case utilizing industry-standard 8 pin octal sockets |
| Life | Mechanical: 10,000,000 operations, Full Load: 100,000 operations |
| Temperature | -28°to 65°C (-18°to 149°F) |
| Output Contacts | 10A @ 277V AC / 7A @ 30V DC, |
| Output | 10A SPDT |
| Monitored Voltage | 190-500V AC |
| Load (Burden) | Less than 40 VA |
| Reset | As standard, the PMP Series relays are in the Automatic Reset mode. However, they can be set in the Manual Reset mode by connecting an external N.C. switch across terminals 6 and 7. Upon application of line voltage, the PMP Series will go into Manual Reset mode if it recognizes a closure across terminals 6 and 7. After a fault clears, the relay will not reset until the N.C. switch is opened. |
| Protection | Phase Loss, Phase Reversal, Voltage Unbalance, Undervoltage & Overvoltage |
| Minimum/Maximum Voltage | 156-550V (PMPU), 77-152V (PMP120): 345-660V (PMP575), 50-60Hz.±5% |
| Configuration / Contact Rating | SPDT. 10A @ 277V AC / 7A @ 30V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

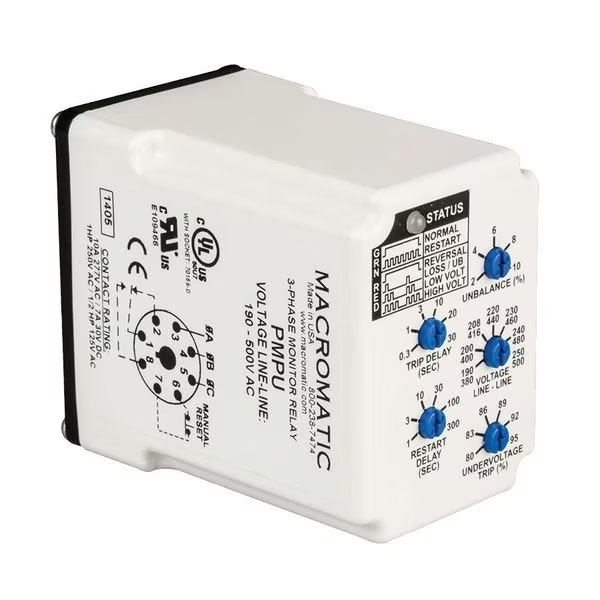

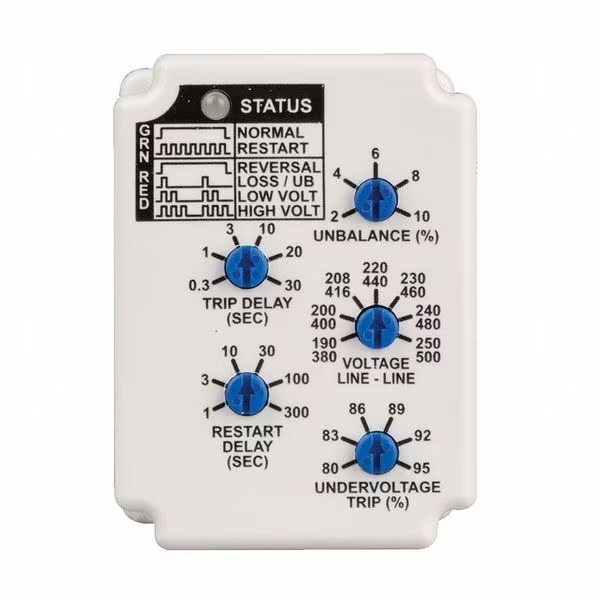

3 Phase Monitor Relay, SPDT, 500VAC, 8 Pin, MACROMATIC, Mfr# PMPU
$103,99
Free shipping will be applied on orders over $50
Phase Monitor Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 7 A @ 30V, Current Rating 10 A, Input Voltage 190 to 500V AC, Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Number of Pins 8, Restart Auto, Manual, Restart Time Delay 1 to 300 sec, Mounting Style Plug-In, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in, Electrical Operating Durability 100,000, For Use With Sensors
9999 in stock
Must order in multiples of 1
Subtotal:
$103.99
