Item - Relay

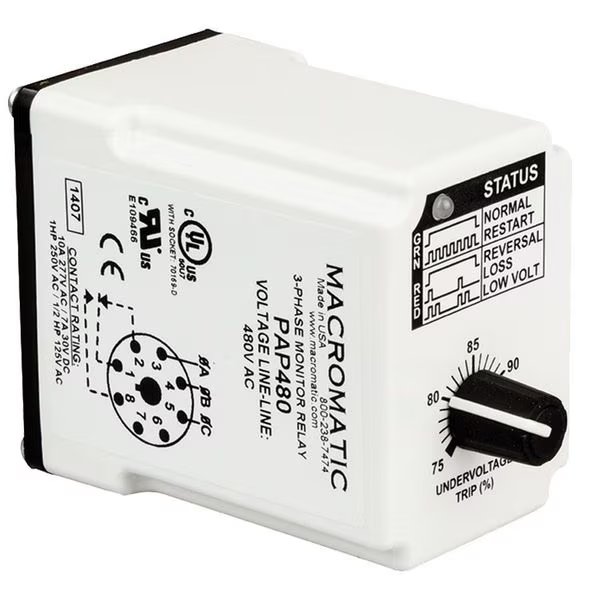

Phase Monitor Relay
Input or Control Voltage
208V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
7A @ 30V
Base Type - Plug In Relay
Octal
Pick Up Range
156 to 198VAC
Under Voltage
156 to 198V AC
Phase Loss Sensitivity
Yes
Phase Loss Time Delay
0.1 sec
Phase Reversal Time Delay
0.1 sec
Body Height - Relay
2.9 in
Contact Amp Rating (Resistive)
10
Trip Delay
Power Up and Restart After Fault Clear: 1 sec., Drop-Out Due to Fault: 100 msec., Phase Loss and Reversal: 4 sec., Undervoltage: 4 sec.
Input or Control Voltage Range
208VAC
Overall Height - Relay
3.5 in
Standards
CE Certified, cULus Listed, cURus
Mechanical Operating Durability
10,000,000
Undervoltage
156 to 198V AC
Maximum Switching Voltage
198V
Contact Rating (AC)
10 A @ 277V
Electrical Operating Durability
100,000
Maximum Switching Capacity
40 VA
Minimum Operating Temperature
-18.4 Degrees F
Overvoltage

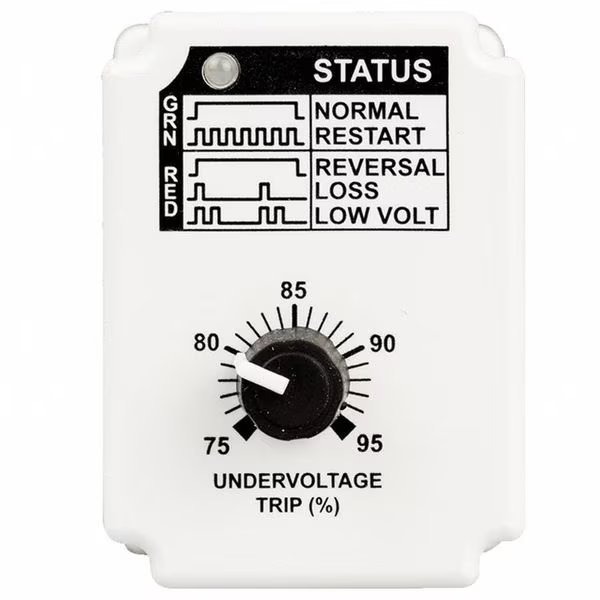

Adjustable 75-95% of the Line Voltage Setting
Maximum Operating Temperature
149 Degrees F
Monitored Parameters
Phase Loss, Phase Reversal, Undervoltage
Contact Rating (DC)
7 A @ 30V
Configuration / Contact Rating
SPDT/DPDT. 10A @ 277V AC / 7A @ 30V DC /5A@ 277V AC / 5A @ 30V DC
Protection
Phase Loss, Phase Reversal u0026 Undervoltage
Enclosure Style
Plug-in case utilizing industry-standard 8 or 11 pin octal sockets, Plug-in
Minimum/Maximum Voltage
156-198V (PAP208); 180-230V (PAP240); 330-380V (PAP400); 360-460V (PAP480); 431-546V (PAP575), all 50/60Hz. ±5%
Output Contacts
10A @ 277V AC / 7A @ 30V DC;DPDT 5A @ 277V AC, 5A@30V DC,1/3HP @ 120/240V AC, B300 Pilot Duty
Load (Burden)
Less than 40 VA
Temperature
-28°to 65°C (-18°to 149°F)
Reset
Automatic upon correction of fault.
Life
Mechanical: 10,000,000 operations, Full Load: 100,000 operations
Country of Origin (subject to change)
United States
