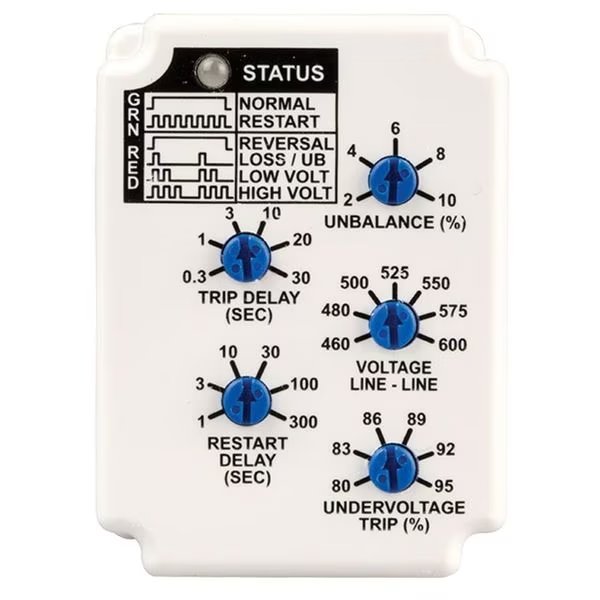

Name: 3 Phase Monitor Relay, SPDT, 600VAC, 8 Pin, MACROMATIC, Mfr# PMP575
Brand: MACROMATIC
SKU: GRG1803536
Price: 104.99 USD
Availability: inStock

Item - Relay	Phase Monitor Relay
Item	Phase Monitor Relay
Input or Control Voltage	480 to 600V AC
AC Contact Rating - Relay	10A @ 277V
DC Contact Rating - Relay	7A @ 30V
Base Type - Plug In Relay	Octal
Number of Pins - Relay	8
Mounting - Relay	Plug In
Contact Form - Relay	SPDT
Pick Up Range	460 to 600VAC
Over Voltage	Fixed 110% of Line Voltage Setting
Under Voltage	432 to 540V AC
Drop-Out Range	80% to 95%
Phase Loss Sensitivity	Yes
Phase Loss Time Delay	0.1 sec
Phase Reversal	Yes
Phase Reversal Time Delay	0.1 sec
Phase Unbalance	2 to 10%
Phase Unbalance Time Delay	0.3 to 30.0 sec
Restart	Auto, Manual
Restart Time Delay	1 to 300 sec
Input or Control Voltage Range	480 to 600VAC
Contact Amp Rating (Resistive)	10
Input Voltage	460 to 600V AC
Body Height - Relay	2.9 in
Contact Form	SPDT
Phase	3
Overall Height - Relay	3.0 in
Socket	5X852
Number of Contacts	1
Trip Delay	Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec.
Body Width - Relay	1.7 in
Pins	8
Base Type	Octal
Body Depth - Relay	2.4 in
Standards	CE Certified, cULus Listed, cURus
For Use With	Sensors
Body Height	2.4 in
Body Width	1.7 in
Minimum Operating Temperature	-18.4 Degrees F
Socket Code	A
Overvoltage	Fixed 110% of Line Voltage Setting
Contact Rating (DC)	7 A @ 30V
Mounting Style	Plug-In
Socket Code Configurator	Socket / Octal / 8
Electrical Connection Type	Pin
Overall Depth	2.4 in
Number of Pins	8
Monitored Parameters	Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage
Maximum Switching Capacity	40 VA
Frequency	50/60 Hz
Mechanical Operating Durability	10,000,000
Maximum Switching Voltage	660V
Contact Rating (AC)	10 A @ 277V
Electrical Operating Durability	100,000
Base Shape	Octal
Maximum Operating Temperature	149 Degrees F
Relay Mounting Style	Socket
Body Depth	2.9 in
Undervoltage	460 to 600V AC
Current Rating	10 A
Power Consumption	40 VA
Minimum/Maximum Voltage	156-550V (PMPU), 77-152V (PMP120): 345-660V (PMP575), 50-60Hz.±5%
Output Contacts	10A @ 277V AC / 7A @ 30V DC,
Configuration / Contact Rating	SPDT. 10A @ 277V AC / 7A @ 30V DC
Enclosure Style	Plug-in case utilizing industry-standard 8 pin octal sockets, Plug-in
Load (Burden)	Less than 40 VA
Monitored Voltage	460-600V AC
Life	Mechanical: 10,000,000 operations, Full Load: 100,000 operations
Temperature	-28°to 65°C (-18°to 149°F)
Reset	As standard, the PMP Series relays are in the Automatic Reset mode. However, they can be set in the Manual Reset mode by connecting an external N.C. switch across terminals 6 and 7. Upon application of line voltage, the PMP Series will go into Manual Reset mode if it recognizes a closure across terminals 6 and 7. After a fault clears, the relay will not reset until the N.C. switch is opened.
Output	10A SPDT
Protection	Phase Loss, Phase Reversal, Voltage Unbalance, Undervoltage & Overvoltage
Country of Origin (subject to change)	United States
Package Quantity	1
