| Property | Value |
|---|---|
| Item | Linear Pillow Block Bearing |
| Bore Dia. (In.) | 0.75 in |
| Material | Aluminum Alloy |
| Self-Alignment | Self-Aligning |
| Bolt Size | #8 |
| Overall Width (In.) | 2.75 in |

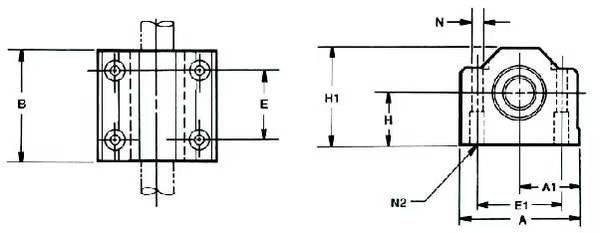

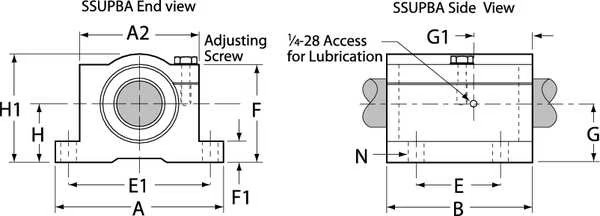

| Dimension A | 2.75 |
| Dynamic Load Capacity (N) | 600 lbf |
| Dimension E1 | 2.375 in |
| Type | Closed Pillow Block |
| Body Width (In.) | 1.88 in |
| Color | Silver |
| Mounting Hole Dia. (In.) | 0.19 in |
| Steady State Speed | 10 fps |
| Dynamic Load Capacity (Lb.) | 600 lb |
| Mounting Hole Center (In.) | 1.25 in |
| Overall Height (In.) | 1.75 in |
| Dimension A2 | 1.88 in |
| Dimension N | 0.19 in |
| Dimension H | 0.937 in |
| Dimension d | 0.750 |
| Mounting Hole Dia. (mm) | 0.19 in |
| Dimension G | 0.94 in |
| Overall Length (In.) | 2.06 in |
| Dimension G1 | 0.72 in |
| For Use With | Thomson Shaftng |
| Dimension H1 | 1.750 in |
| Dimension F1 | 0.31 in |
| Dimension E | 1.25 in |
| Dimension B | 2.06 in |
| Dimension F | 1.56 in |
| Mounting Surface to Shaft Center (In.) | 0.937 in |
| Bearing Type | Ball |
| Inside Dia. | 3/4 in |
| Minimum Operating Temperature | Not Available |
| Housing Style | Single |
| Flange Width | 2.75 in |
| Pillow Block Design | Not Adjustable |
| Maximum Operating Temperature | 185 Degrees F |
| Operating Temperature Range | 185 Degrees F |
| Length (In.) | 2 1/16 in |
| Brand u0026 Series | THOMSON Super |
| Series | Super |
| System of Measurement | Inch |
| Dimension a | 2.75 in |
| Overall Length | 2 in |
| Overall Height | 1 3/4 in |
| Dynamic Load Capacity | 600 lbf |
| Mounting Surface to Shaft Center | 0.937 in |
| Flange Height | 1.75 in |
| Pillow Block Type | Closed |
| Body Width | 1.88 in |
| Mounting Hole Center | 1.25 in |
| Includes Seals | Seals Not Included |
| Mounting Hole Diameter | 0.19 in |
| Inside Diameter | 3/4 in |
| Flange Thickness | 0.31 in |
| Flange Diameter | Not Applicable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
Pillow Block, 0.750 In Bore, 2.060 In L, Thomson, Mfr#: SPB12
$170.99
Free shipping will be applied on orders over $50
Linear Pillow Block Bearing, System of Measurement Inch, Inside Diameter 3/4 in, Overall Length 2 in, Self-Alignment Self-Aligning, Material Aluminum Alloy, Dynamic Load Capacity 600 lbf, Steady State Speed 10 fps, Series Super, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature Not Available, Housing Style Single, Pillow Block Type Closed, Bolt Size #8, Overall Height 1 3/4 in, Body Width 1.88 in, Includes Seals Seals Not Included, Flange Diameter Not Applicable
9999 in stock
