Item

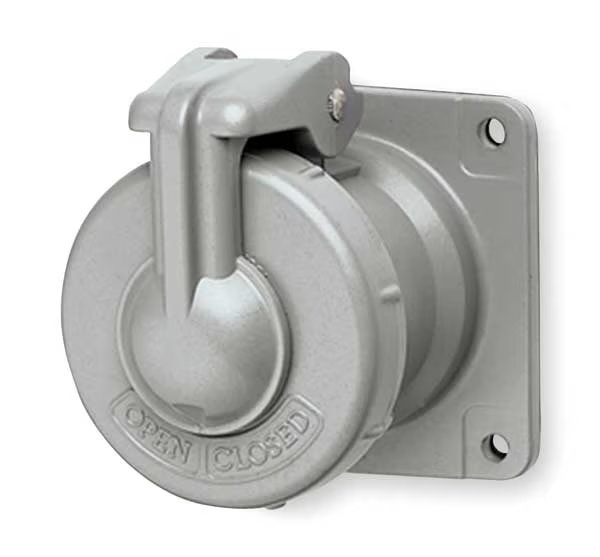

Pin and Sleeve Receptacle
Body Material - Pin and Sleeve
Copper-Free Aluminum
Amps - Plugs and Receptacles
60 A
Receptacle Type
Pin and Sleeve
Material
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Standards
CSA Certified LR111846, UL E10757
Features
Boxes Come with a Green Grounding Screw
Use With
Suitable for Indoor Or Outdoor Use, Pulp u0026 Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, ReNeries, Chemical Plants, Grain Facilities, Textile Manufacturing, Food Processing Facilities
Voltage Rating
600V AC/250V DC
Connection Orientation
Straight
Wire Connection Type
Spring Clamp Terminals
Housing Material
Copper-Free Aluminum
Cap Type
Flip-Up and Screw Cap
Hazardous Location Specification
Not Applicable
For Environment
Cold, Corrosive, Hazardous Location, Wet
Housing Material Finish
Baked Powder Epoxy/Polyester Coated
For Location
Indoor, Outdoor
Application
Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp u0026 Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Reï¬neries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Finish Type
Baked Powder Epoxy/Polyester Finish
Dimensions
4.5 in x 4.25 in x 4.66 in
Frequency Rating
50-400 Hz
Country of Origin (subject to change)
United States
