| Item | Plain Bushing Bearing |
| Type | Closed |
| Outside Dia. | 1 1/4 in |
| Material | Aluminum |
| Dimension D1 | 1.187 in |
| Static Load Capacity | 1,900 lb |
| Inside Dia. Tolerance | 0.0005 |
| Dimension D2 | 1.195 in |
| Dimension C4 | 0.125 in |
| Dimension d | 0.75 in |
| Color | Black |
| Inside Dia. | 3/4 in |
| Dimension C2 | 0.056 in |
| Dimension C3 | 0.312 in |
| Length | 1 5/8 in |
| Dimension C1 | 1.163 in |
| Temp. Range | -400 Degrees to 550 Degrees F |
| Lubrication | Self Lubricating |
| Outside Dia. Tolerance | 0.0005 |
| For Use With | Linear Motion Shafts |
| Dimension C | 1.625 in |
| Liner | TEP 950 |
| Minimum Operating Temperature | -400 Degrees F |
| Running Clearance Class | Precision |
| Static Load Capacity (N) | 1,900 lbf |
| Shell Material | Aluminum |
| Operating Temperature Range | -400 Degrees F to 550 Degrees F |
| Maximum Operating Temperature | 550 Degrees F |
| Series | FluoroNyliner |
| System of Measurement | Inch |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

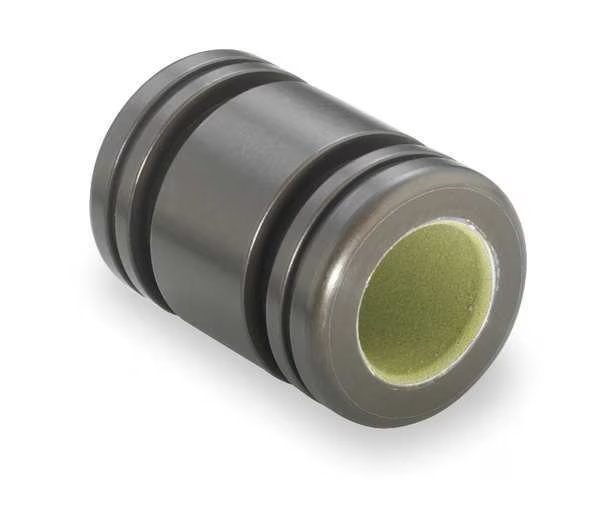

Plain Bushing Bearing, Closed, ID 0.750 In, THOMSON, Mfr# FNYBU12
$23,69
-3% / ea
with subscription
Free shipping will be applied on orders over $50
Plain Bushing Bearing, Inside Dia. 3/4 in, Outside Dia. 1 1/4 in, Material Aluminum, Color Black, Dimension C 1.625 in, Dimension C1 1.163 in, Dimension C2 0.056 in, Dimension C3 0.312 in, Dimension C4 0.125 in, Dimension d 0.75 in, Dimension D1 1.187 in, Dimension D2 1.195 in, For Use With Linear Motion Shafts, Inside Dia. Tolerance 0.0005, Length 1 5/8 in
9999 in stock
Must order in multiples of 1
Subtotal:
$23.69
