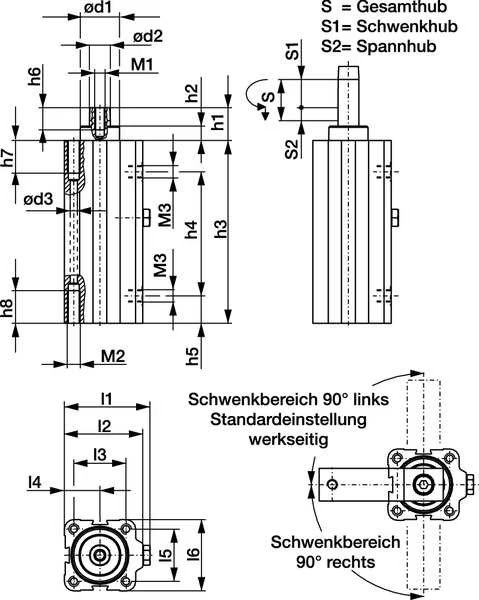

Holding Capacity (Lb.)
103
Operating Temp.
-14 to +195 F
Max. Input Air Pressure (PSI)
145
Includes
Clamp Only: Arm is Sold Separately
Features
Swing Direction is Field Adjustable Between Left or Right
Base Mounting Centers (In.)
40 x 40mm
Application
Assembly, Light Machining, Welding
Max. Input Air Pressure
145 psi
Min. Operating Temperature
-14 Degrees F
Max. Operating Temperature
195 Degrees F
Max. Vertical Clamp Stroke
31.50mm
Clamping Force - Maximum
85 lbf
Total Stroke Length
1.24 in
Number of Mounting Holes
4
Threaded Body Thread Size
1/8
Air Connection Size
1/8 in
Vertical Clamp Stroke - Maximum
0.39 in
Operating Temperature - Maximum
140 Degrees F
Air Connection Center-to-Center Distance
3.74 in
Operating Temperature - Minimum
-14 Degrees F
Stroke Length During Rotation
0.85 in
Input Air Pressure - Maximum
120 psi
Body Mounting Type
T-Slot Framing
Movement Direction
Left, Right, Straight
Cylinder Bore Size
1.57 in
Country of Origin (subject to change)
Germany
