Item | Pneumatic Thermostat |
Action Type - Pneumatic Thermostats | Direct Acting |
No. of Pipes | 2 Pipe |
Thermostat Application | Heating and Cooling |
Temperature Output Settings | Single Temperature |
Control Air Pressure | 3 to 15 psi |
Air Connections | 5/32 in Barb |
Height | 3 3/8 in |
Width | 2 1/8 in |
Depth | 1 5/8 in |
Temp. Control Range | 45 Degrees to 85 Degrees F |
Max. Air Pressure | 30 psi |
Includes | Mounting Hardware, Mounting Plate |
Element Type | Bi-Metal |
Mounting Style | Vertical |
Max. Ambient Temp. | 140 Degrees F |
Reverse Acting / Direct Acting | Direct Acting |
Throttling Range | 3 to 15 psi |
Single Temp. / Dual Temp. | Single Temperature |
Air Consumption | 20 scim |
1 Pipe / 2 Pipe | 2 Pipe |
Heating / Cooling | Heating and Cooling |
Sensor Type | Bi-Metallic Spring |
Type | 2-Pipe Single Temp. |
Application | Heat or Cool |
Action Type | Direct Acting |
Control Air Pressure Settings | 3 psig (Day)/ 15 psig (Night) |
Compatible System Type | Pneumatic Valves and Damper Actuators |
Overall Height | 3 3/8 in |
Manual Indexing Switch | No |
Number of Dials | Single |
Minimum Control Temperature | 45 Degrees F |
Fitting Connection | Barbed 5/32 in |
Maximum Control Temperature | 85 Degrees F |
Differential Type | Adjustable |
Air Connection Outside Diameter | 1/8 in |
Temperature Control Range | 45 Degrees to 85 Degrees F |
Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
Maximum Air Pressure | 30 psig |
Mounting Direction/Includes Cover | Vertical, No |
Thermostat Action | Direct |
Temperature Scale | Fahrenheit |
Overall Width | 2 1/8 in |
Mounting Direction | Vertical |
Minimum Throttling | 3 psi |
Temperature Settings | Single Temperature |
Overall Depth | 1 5/8 in |
Maximum Throttling | 15 psi |
Air Flow Output | High Volume |
Number of Pipes | 2 |
Country of Origin (subject to change) | United States |
Package Quantity | 1 |

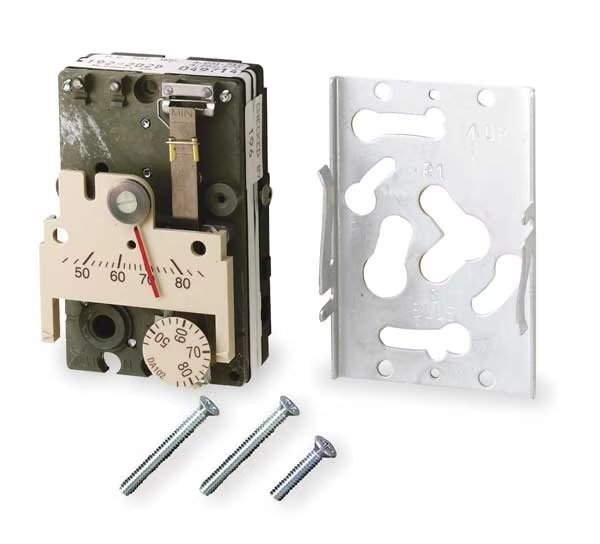

Pneumatic Thermostat, Single Temperature, Heating and Cooling, 2 Pipe, SIEMENS, Mfr# 192-202
$126,60
-3% / ea
with subscription
Free shipping will be applied on orders over $50
Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating and Cooling, Single Temperature, Control Air Pressure 3 to 15 psi, Air Connections 5/32 in Barb, Element Type Bi-Metal, Max. Air Pressure 30 psi, Max. Ambient Temp. 140 Degrees F, Mounting Style Vertical, Height 3 3/8 in, Width 2 1/8 in, Depth 1 5/8 in, Temp. Control Range 45 Degrees to 85 Degrees F, Air Consumption 20 scim, Throttling Range 3 to 15 psi, Includes Mounting Hardware, Mounting Plate
9999 in stock
Must order in multiples of 1
