| Item | Pneumatic Thermostat |
| Action Type - Pneumatic Thermostats | Direct Acting |
| No. of Pipes | 2 Pipe |
| Thermostat Application | Heating and Cooling |
| Temperature Output Settings | Single Temperature |
| Control Air Pressure | 3 to 15 psi |
| Air Connections | 5/32 in Barb |
| Height | 2 3/32 in |
| Width | 3 1/8 in |
| Depth | 1 3/4 in |
| Temp. Control Range | 55 Degrees to 85 Degrees F |
| Max. Air Pressure | 25 psi |
| 1 Pipe / 2 Pipe | 2 Pipe |
| Air Consumption | 20 scim |
| Reverse Acting / Direct Acting | Direct Acting |
| Max. Ambient Temp. | 135 Degrees F |
| Single Temp. / Dual Temp. | Single Temperature |
| Heating / Cooling | Heating and Cooling |
| Mounting Style | Vertical |
| Element Type | Bi-Metal |
| Throttling Range | 1 to 5 psi |
| Application | Heat or Cool |
| Sensor Type | Bi-Metallic Spring |
| Type | Direct Acting |
| Control Type | Exposed Dial |
| Action Type | Direct Acting |
| Mounting Direction/Includes Cover | Vertical, No |
| Action | Direct |
| Overall Width | 3 1/8 in |
| Air Connection Outside Diameter | 1/8 in |
| Maximum Air Pressure | 25 psig |
| Maximum Control Temperature | 85 Degrees F |
| Overall Depth | 1 3/4 in |
| Minimum Control Temperature | 55 Degrees F |
| Control Air Pressure Settings | 0.75 psig (Day)/ 4 psig (Night) |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Thermostat Action | Direct |
| Temperature Control Range | 55 Degrees to 85 Degrees F |
| Number of Dials | Single |
| Air Flow Capacity | 400 scim |
| Temperature Settings | Single Temperature |
| Manual Indexing Switch | No |
| Air Flow Output | High Volume |
| Temperature Sensitivity | 0.75 to 4 psi/ Degrees F |
| Number of Pipes | 2 |
| Differential Type | Adjustable |
| Fitting Connection | Barbed 5/32 in |
| Overall Height | 2 1/8 in |
| Temperature Scale | Celsius/Fahrenheit |
| Number of Pipes/Air Flow Output | 2 Pipes, High Volume |
| Mounting Direction | Vertical |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

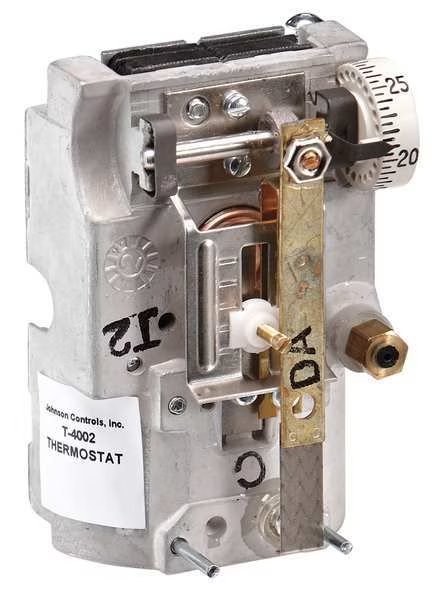

Pneumatic Thermostat, Single Temperature, Heating and Cooling, 2 Pipe, JOHNSON CONTROLS, Mfr# T-4002-9012
$154,99
Free shipping will be applied on orders over $50
Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating and Cooling, Single Temperature, Control Air Pressure 3 to 15 psi, Air Connections 5/32 in Barb, Element Type Bi-Metal, Max. Air Pressure 25 psi, Max. Ambient Temp. 135 Degrees F, Mounting Style Vertical, Height 2 3/32 in, Width 3 1/8 in, Depth 1 3/4 in, Temp. Control Range 55 Degrees to 85 Degrees F, Air Consumption 20 scim, Throttling Range 1 to 5 psi
9999 in stock
Must order in multiples of 1
Subtotal:
$154.99
