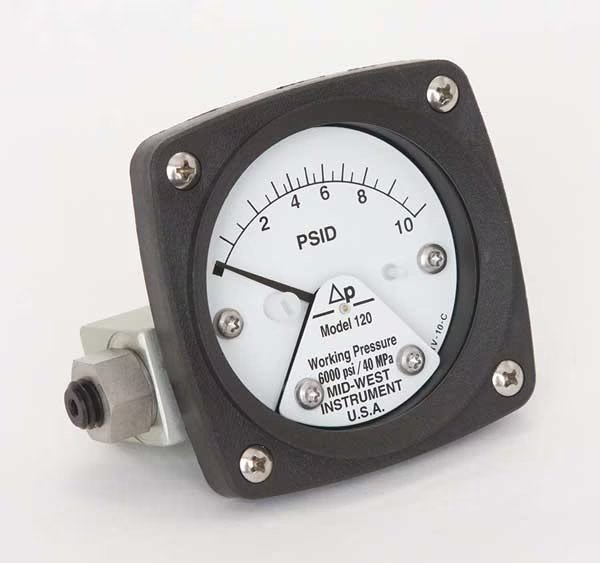

Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Stainless Steel / Buna-N
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Differential Pressure Range Value
0 to 10
Rated Total Pressure
3,000 psi
Gauge Primary Range Smallest Graduation
0.5
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Dial Material
Engineered Plastic
Differential Pressure Range
0 to 10 psi
Item
Differential Pressure Gauge
Piston Material
Stainless Steel
Manufacturers Warranty Length
5 yr
Gauge Case Material
Plastic
Process Connection Size
1/4 in
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Movement Material
Stainless Steel
Pressure Gauge Type
Differential Pressure Gauge
Process Temperature Range
-40 Degrees to 200 Degrees F
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
3.5 in
Maximum Working Static Pressure
3,000 psig
Nominal Dial Size
2 1/2 in
Application - Max Pressure
For High Operating Pressure
Application
Hydraulics, Filtration Monitoring, Pressure Detection, Pumps, Refrigeration, Valves
Max Pressure Application
For High Operating Pressure
Primary Scale Minor Graduations
0.5
Includes Calibration Certificate
No
Pressure Range
0 to 10 psid
Process Connection Gender
Female
Hazardous Location Rating
Not Rated
Case Construction
Glass Reinforced
Process Connection Location
Back
Includes Mounting Hardware
No
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Brand and Series
MIDWEST INSTRUMENT 120
IP/NEMA Rating
IP65, NEMA 4X
Bezel Gasket Material
Buna-N
Process Connection Type
NPT
Process Connection
1/4 in NPT Female
Accuracy Grade
ASME B40.1 Grade B
Country of Origin (subject to change)
United States
