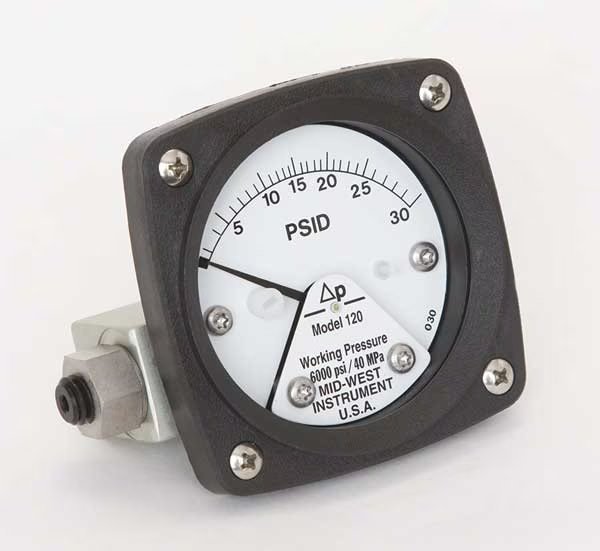

Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Metal
Basic Gauge Wetted Parts
Stainless Steel / Buna-N
Differential Gauge Connection Type
FNPT
Differential Gauge Connection Size
1/4 in
Gauge Connection Location
Back
Differential Pressure Range Units
psi
Differential Pressure Range Value
0 to 30
Gauge Primary Range Smallest Graduation
1
Piston Material
Stainless Steel
Dial Material
Engineered Plastic
Differential Pressure Range
0 to 30 psi
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Rated Total Pressure
6,000 psi
Manufacturers Warranty Length
5 yr
Body Material
316 Stainless Steel
Item
Differential Pressure Gauge
Process Connection Size
1/4 in
Hazardous Location Rating
Not Rated
Process Temperature Range
-40 Degrees to 200 Degrees F
Primary Scale Minor Graduations
1
Process Connection Location
Back
Case Construction
Glass Reinforced
Accuracy Grade
ASME B40.1 Grade B
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Process Connection Type
NPT
Process Connection
1/4 in NPT Female
Process Connection Gender
Female
Pressure Range
0 to 30 psid
Includes Calibration Certificate
No
Max Pressure Application
For High Operating Pressure
Housing Material
316L Stainless Steel
Includes Mounting Hardware
No
Nominal Dial Size
2 1/2 in
Movement Material
Stainless Steel
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Pressure Gauge Type
Differential Pressure Gauge
Bezel Gasket Material
Buna-N
Maximum Working Static Pressure
6,000 psig
Bolt Circle Diameter
3.5 in
IP/NEMA Rating
IP65, NEMA 4X
Application - Max Pressure
For High Operating Pressure
Manufacturer Warranty Length
5 yr
Brand and Series
MIDWEST INSTRUMENT 120
Application
Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Flow Measurement, Pumps, Refrigeration, Valves
Gauge Case Material
Plastic
Country of Origin (subject to change)
United States
