| Property | Value |
|---|---|
| Pipe Size | 1 in |
| Connection Type | FNPT Union x FNPT |
| Body Material | Cast Bronze |
| Max. Pressure | 400 psi |
| Max. Temp. | 140 Degrees F |
| Material | Lead Free Bronze, Stainless Steel |
| Includes | Strainer |
| Item | Pressure Reducing Valve |
| Standards | ASSE 1003, CSA B356, cUPC |
| Length | 9 in |
| Compliance | ASSE(R) Listed 1003, CSA(R) Certified, IAPMO(R) Listed, NSF/ANSI 61 /CAN 61 u0026 372 |
| Strainer | Yes |
| Overall Height | 6 11/16 in |
| Application | Commercial Use, Residential Use |
| Factory Set Pressure | 50 psi |
| Height | 6 3/4 in |
| Valve Type | Pressure Reducing Valve |
| Series | 500XL3 |
| Pressure Adjustment Range | 25 to 75 psi |
| Preset Pressure Settings | 50 psi |
| Material - Valve | Lead Free Bronze, Stainless Steel |
| Overall Width | 2 3/4 in |
| Pilot Adjustment - Maximum | 75 psi |
| Port Design | Full Port |
| Flow Rate - Continuous Maximum | 42.3 gpm |
| Includes Strainer | Strainer Included |
| Operating Pressure - Maximum | 400 psi |
| Pilot Adjustment - Minimum | 25 psi |
| Coating/Lining | NSF Listed Fusion Bonded Epoxy Lining and Coating |
| Flow Rate - Intermittent Maximum | Not Applicable |
| Outlet Connection Size | 1 in |
| For Media | Water |
| Fluid Temperature - Maximum | 140 Degrees F |
| Outlet Connection Type | NPT |
| Operating Pressure - Minimum | 15 psi |
| NSF Certifications for Food and Drinking Water | NSF 372, NSF 61 |
| Inlet Connection Size | 1 in |
| Outlet Connection Gender | Female |
| Inlet Connection Type | NPT |
| Union Type | Single |
| Inlet Connection Gender | Female |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

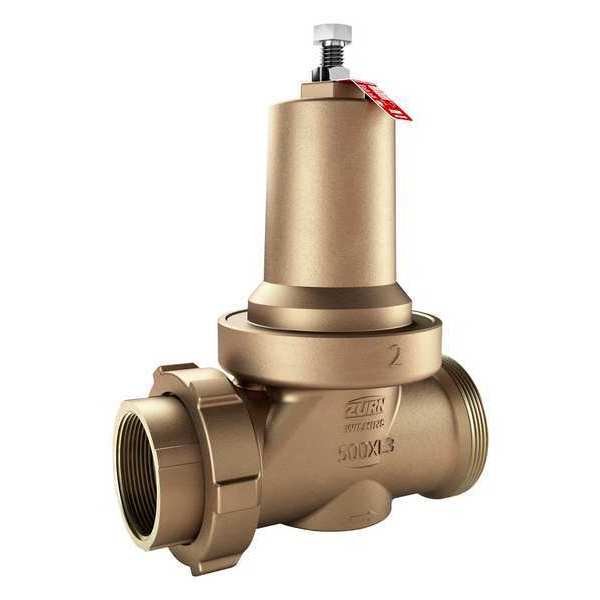

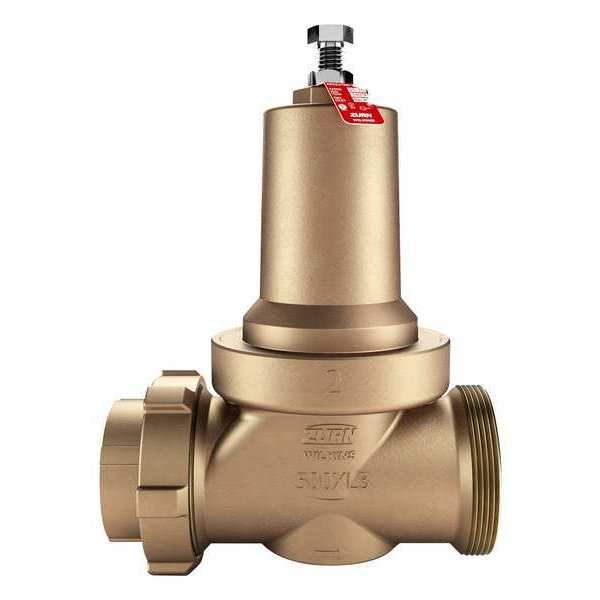

Pressure Reducing Valve, Zurn, Mfr#: 1-500XL3Y
$683.99
Free shipping will be applied on orders over $50
Pressure Reducing Valve
