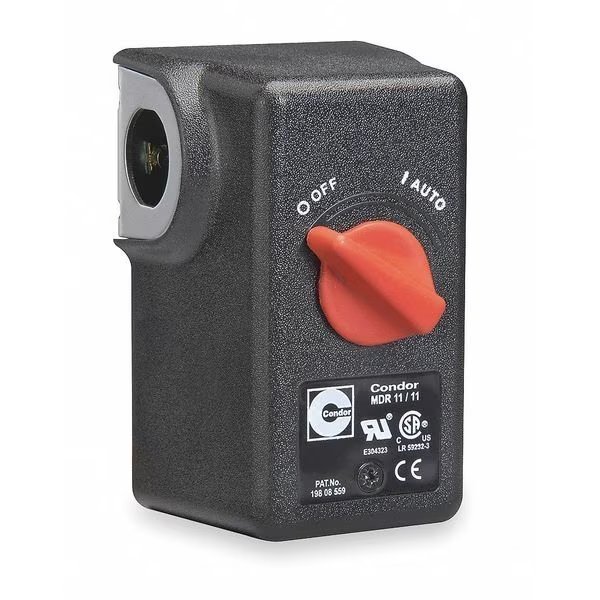

Pressure Switch Application
Air Compressor
Manual Switch Action
Auto/Off
Pressure Switch Port Type
(1) Port, 1/4 in FNPT
Pressure Switch Factory On/Off Setting
160/200 psi
Pressure Switch Unloader
No
Pressure Switch Differential
40 to 65 psi
Pressure Switch Range
50 to 200 psi
Pressure Switch Electrical Contact Form
DPST
Pressure Switch Action
Standard
Temp. Range
-22 Degrees to 257 Degrees F
AC Contact Rating
26A @ 240V
Special Features
11 Bar/160 psi Maximum Cut-Out Pressure, 4 kW/4 hp Switching Capacity
Standards
CSA Certified, UL Listed
Unloader
No Unloader Included
Product Type
Water and Air Pressure Switch
Factory Off Setting
200 psi
Switch Function Configuration
Auto/Off
Operating Temperature - Maximum
257 Degrees F
Differential Pressure - Maximum
65 psi
Manufacturer Warranty Length
1 yr
Pressure Switch Action Type
Standard
Factory On Setting
160 psi
Number of Pressure Connection Ports
1
Pressure - Maximum
200 psi
Pressure Connection Type
1/4
Operating Temperature - Minimum
-22 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
Differential Pressure - Minimum
40 psi
Horsepower @ Single Phase - 240V AC
3 hp
Country of Origin (subject to change)
China
